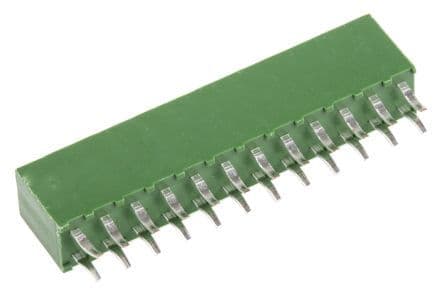

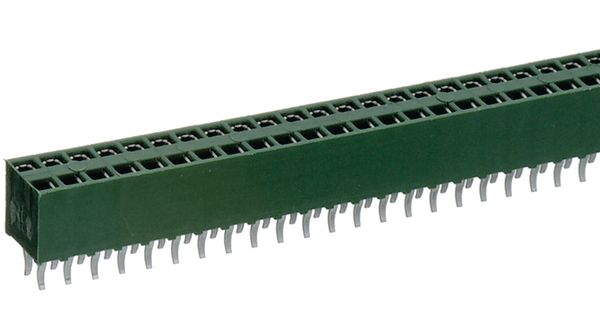

2x12 Position, 24 Contact Female Socket Receptacle with a 2.54mm pitch and 7mm height. Features straight, through-hole mounting with a 3.1mm contact post length and solder termination. Contact current rating is 3A with gold plating over bronze contacts. Housing and insulation are green, with a UL94 V-0 flammability rating and a maximum operating temperature of 105°C.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-215307-2 technical specifications.
General
| Boss | No (Without) |
| Color | Green |
| Contact Current Rating | 3A |
| Contact Finish - Mating | GOLD |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin |
| Contact Post Length | 3.1mm |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Depth | 5.06mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 7mm |
| Housing Color | Green |
| Insulation Color | Green |
| Insulation Material | Glass |
| Length | 30.48mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 24 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 64 |
| Packaging | Bulk |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6mm |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 2.54mm |
| Sealable | No (Without) |
| Series | AMPMODU HV-100 |
| Stackable | Yes |
| Tail Length | 3.1mm |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-215307-2 Datasheet
Download the complete datasheet for TE Connectivity 1-215307-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
