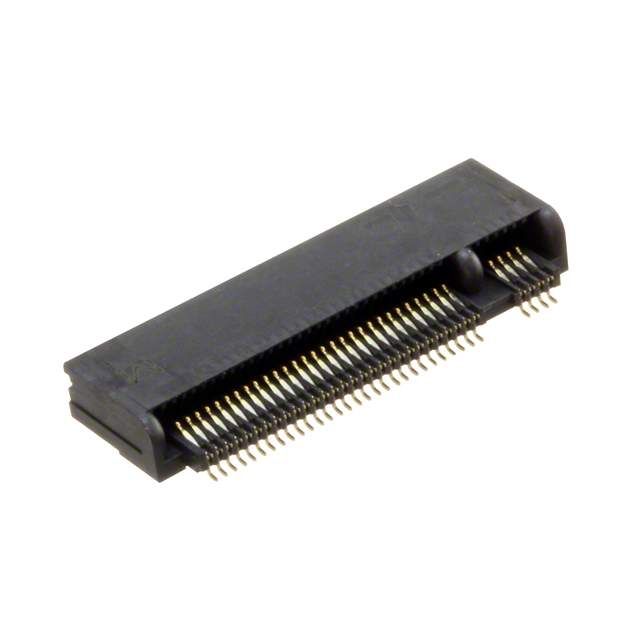

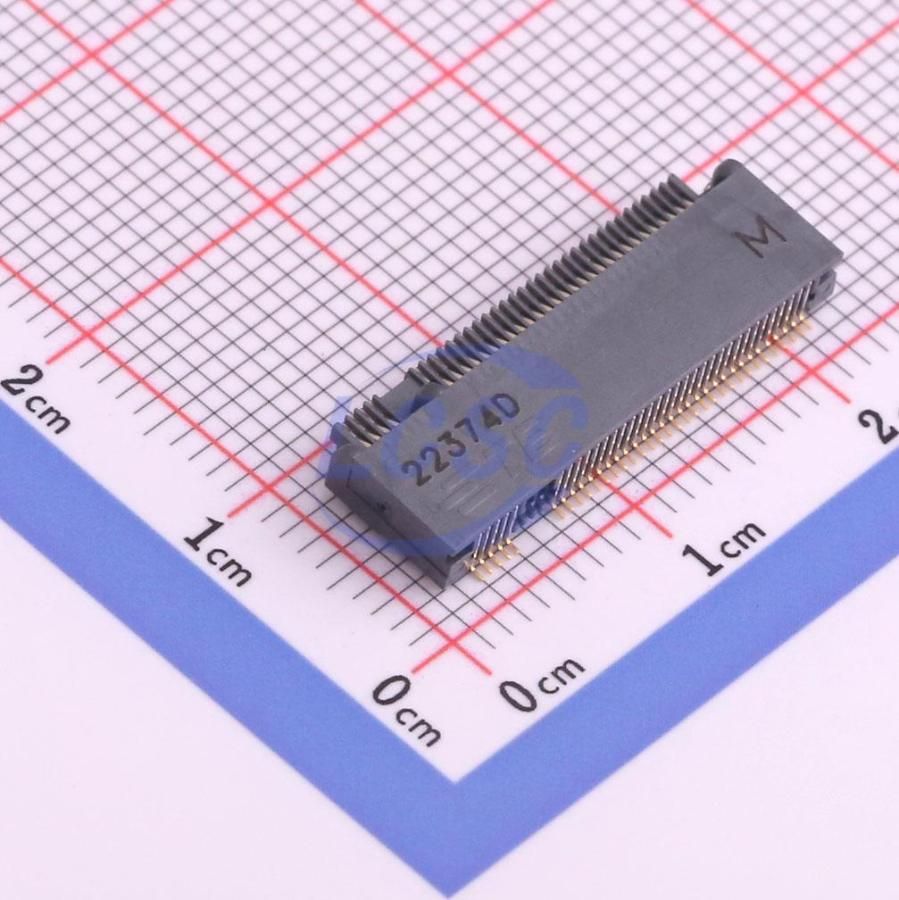

67-position, 2-row card edge socket connector featuring a 0.5mm pitch and right-angle surface mount orientation. This female connector utilizes a copper alloy contact material with gold and matte plating, rated for 500mA contact current and 50V operating voltage. The black thermoplastic housing measures 3.2mm in height, 8.7mm in width, and 0.862 inches in length, with a row spacing of 7.55mm. Designed for solder termination and packaged on tape and reel, it operates within a temperature range of -40°C to 80°C and is RoHS compliant.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 1-2199119-5 technical specifications.
General
Color
Black
Contact Current Rating
500mA
Contact Material
Copper Alloy
Contact Plating
Gold, Matte
Current Rating
500mA
Gender
Female
Height
3.2mm
Housing Color
Black
Insulation Material
Thermoplastic
Length
0.862inch
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Contacts
67
Number of Positions
67
Number of Rows
2
Operating Supply Voltage
50V
Orientation
Right Angle
Packaging
Tape and Reel
PCB Mounting Orientation
Right Angle
Pitch
0.5mm
Plating
Gold
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
7.55mm
Sealable
No (Without)
Termination
Solder
Voltage Rating
50V
Width
8.7mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-2199119-5 Datasheet
Download the complete datasheet for TE Connectivity 1-2199119-5 to view detailed technical specifications.
