67 Pos 0.5mm Pitch M.2 Header, Female, Right Angle, SMT

TE Connectivity

1-2199230-6

Name: 1-2199230-6 TE Connectivity
Brand: TE Connectivity
SKU: 1-2199230-6

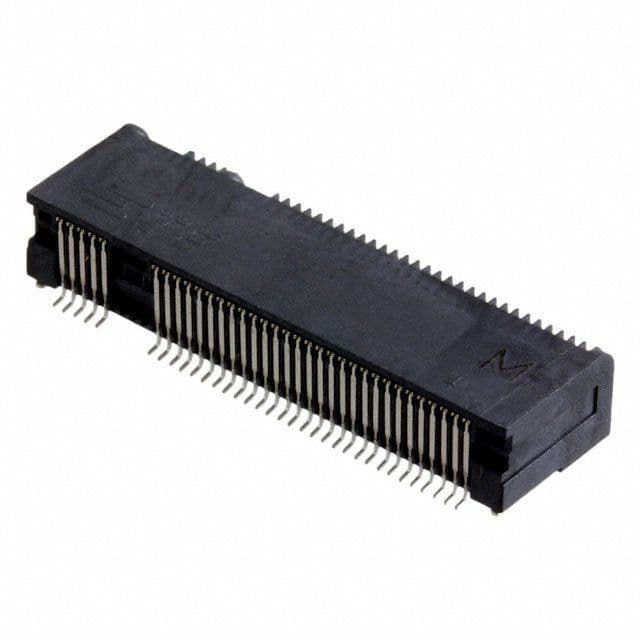

67 Pos 0.5mm Pitch M.2 Header, Female, Right Angle, SMT

67-position, 2-row M.2 connector with 0.5mm pitch, designed for right-angle surface mount applications. Features gold-plated copper alloy contacts with a 500mA current rating and a 0.165-inch height. The black thermoplastic housing ensures durability within a -40°C to 80°C operating temperature range. This RoHS and ELV compliant component is supplied in tape and reel packaging.

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 1-2199230-6 technical specifications.

General

Color	Black
Contact Current Rating	500mA
Contact Material	Copper Alloy
Contact Plating	Gold, Matte
ELV	Compliant
Gender	Female
Height	0.165inch
Housing Color	Black
Insulation Material	Thermoplastic
Length	0.862inch
Max Operating Temperature	80°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Positions	67
Number of Rows	2
Orientation	Right Angle
Package Quantity	1000
Packaging	Tape and Reel
PCB Mounting Orientation	Right Angle
Pitch	0.5mm
RoHS Compliant	Yes
Termination	Solder
Weight	0.022646oz
Width	8.7mm
