TE CONNECTIVITY

1-2199298-3

Datasheet

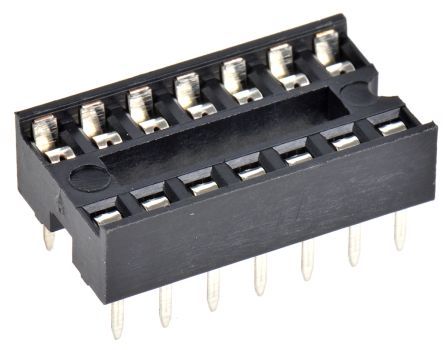

14 Pos DIP Socket, 2.54mm Pitch, 1A, 250V, Thru-Hole, Straight

TE Connectivity

1-2199298-3

Name: 1-2199298-3 TE Connectivity
Brand: TE Connectivity
SKU: 1-2199298-3

14 Pos DIP Socket, 2.54mm Pitch, 1A, 250V, Thru-Hole, Straight

14-position, 2-row dual in-line package (DIP) socket with a 2.54mm lead pitch and straight, through-hole termination. Features tin-plated bronze contacts rated for 1A and 250V, with a mating contact finish of TIN. Operates within a -40°C to 105°C temperature range and boasts a UL94 V-0 flammability rating. Housing is black, and the component is RoHS compliant.

Voltage Rating250V

Current Rating1A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1-2199298-3 technical specifications.

General

Circuit Application	Signal
Color	Black
Contact Current Rating	1A
Contact Finish - Mating	TIN
Contact Material	Bronze
Contact Plating	Tin
Contact Post Length	3inch
Current Rating	1A
Depth	5.1mm
ELV	Compliant
Flammability Rating	UL94 V-0
Height	5.3mm
Housing Color	Black
Lead Length	76.2mm
Lead Pitch	2.54mm
Length	0.7inch
Mating Alignment	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	14
Number of Positions	14
Number of Rows	2
Orientation	Straight
Package Quantity	34
Packaging	Rail/Tube
Pitch	2.54mm
Plating Thickness	1.524um
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.3inch
Series	Diplomate DL
Termination	Through Hole
Voltage Rating	250V
Width	10mm
