5-meter, 22AWG shielded sensor cable assembly featuring a 4-position M8 female receptacle connector and wire leads. This general-purpose cable assembly offers a 4A current rating and 30V voltage rating, with an operating temperature range of -30°C to 80°C. Constructed with PVC insulation and jacket, it provides IP65 environmental protection, ensuring it is waterproof, water-resistant, and dust-tight.
Voltage Rating30V
Current Rating4A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 1-2273007-3 technical specifications.
General
Color
Black
Connector Type A
Receptacle
Connector Type B
Wire Leads
Contact Current Rating
4A
Current Rating
4A
ELV
Compliant
Environmental Protection
Yes (With)
Gender
Female
Insulation Material
PVC
Jacket Material
PVC
Length
5m
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Free Hanging
Number of Conductors
3
Number of Positions
4
Package Quantity
25
Packaging
Box
Ratings
IP65, Waterproof, Water Resistant, Dust Tight
RoHS Compliant
Yes
Series
M8
Shielding
Shielded
Voltage Rating
30V
Wire/Cable Color
Black
Wire/Cable Diameter
0.208inch
Wire/Cable Gauge
22AWG
Wire/Cable Type
PVC
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-2273007-3 Datasheet
Download the complete datasheet for TE Connectivity 1-2273007-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

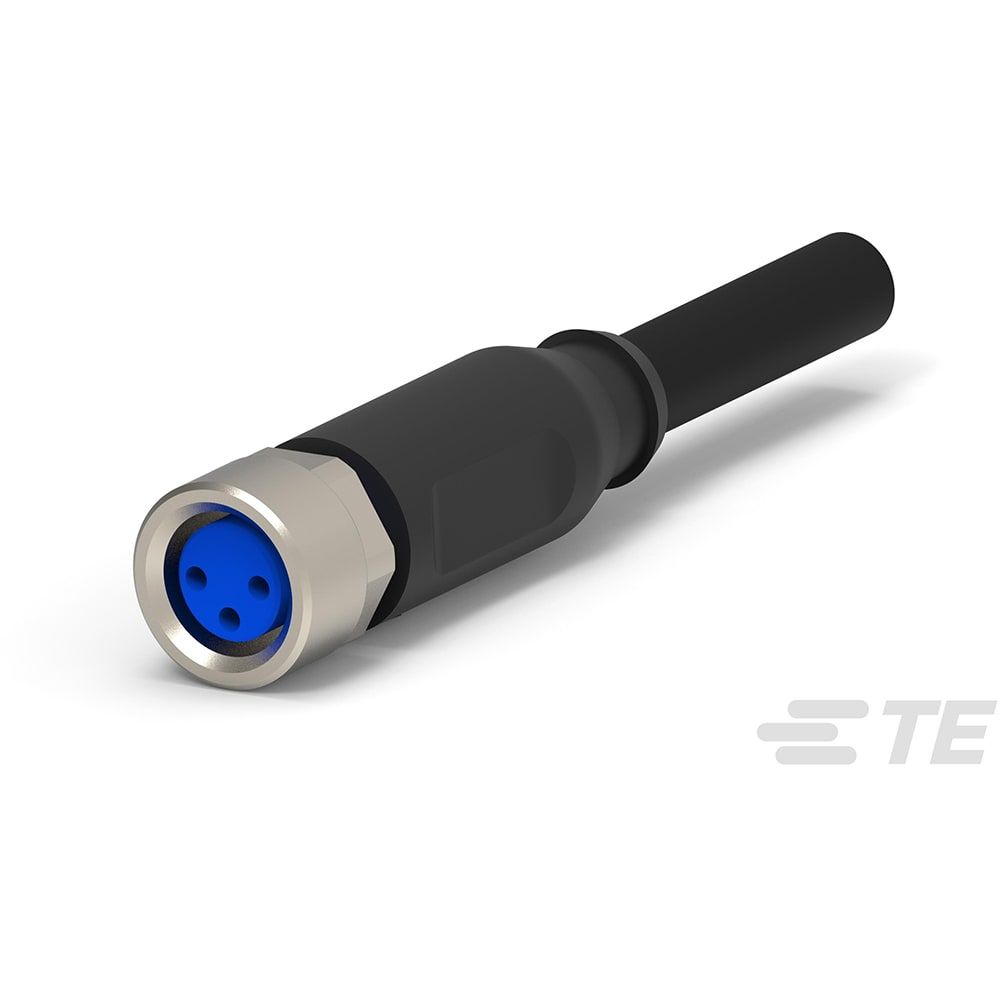

Product Images
