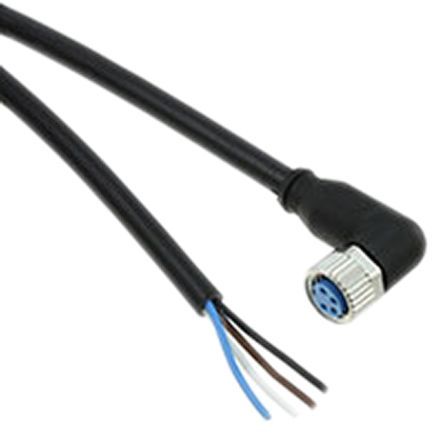

This sensor cable features a right-angle M8 receptacle with 4 positions and 4 contacts, connecting to free/stripped wire leads. Rated for 4A and 30V operating voltage, it offers IP65 environmental protection, including waterproofing and dust tightness. The cable is 1.5 meters (4.9 ft) long, constructed with a black PVC jacket and insulation, and utilizes 22AWG conductors. Maximum operating temperature is 80°C, with a minimum of -30°C.
Voltage Rating30V
Current Rating4A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 1-2273011-1 technical specifications.
General
| Color | Black |
| Connector Type A | Receptacle |
| Connector Type B | Wire Leads |
| Contact Current Rating | 4A |
| Current Rating | 4A |
| ELV | Compliant |
| Environmental Protection | Yes (With) |
| Gender | Female |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Lead Free | Lead Free |
| Length | 1.5m |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Mount | Free Hanging |
| Number of Conductors | 5 |
| Number of Contacts | 4 |
| Number of Cores | 4 |
| Number of Positions | 4 |
| Operating Supply Voltage | 30V |
| Package Quantity | 25 |
| Packaging | Box |
| PCB Mounting Orientation | Right Angle |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| Series | M8 |
| Shielding | Unshielded |
| Voltage Rating | 30V |
| Wire/Cable Color | Black |
| Wire/Cable Diameter | 0.188inch |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | PVC |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-2273011-1 Datasheet
Download the complete datasheet for TE Connectivity 1-2273011-1 to view detailed technical specifications.
No datasheet is available for this part.
