5-meter shielded sensor cable assembly featuring a 22AWG, 4-conductor PUR wire with a grey PVC jacket. M12 circular male plug connector (5 positions) mates with wire leads. Rated for 4A current and 60V voltage, with IP65, waterproof, water-resistant, and dust-tight protection. Operating temperature range from -40°C to 176°C.
Voltage Rating60V
Current Rating4A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 1-2273096-3 technical specifications.
General
| Color | Grey |
| Connector Type A | Plug, M12 |
| Connector Type B | Wire Leads |
| Contact Current Rating | 4A |
| Current Rating | 4A |
| ELV | Compliant |
| Gender | Male |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 5m |
| Max Operating Temperature | 176°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Conductors | 4 |
| Number of Positions | 3 |
| Package Quantity | 25 |
| Packaging | Box |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | M12 |
| Shielding | Shielded |
| Voltage Rating | 60V |
| Wire/Cable Color | Grey |
| Wire/Cable Diameter | 5.9mm |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | PUR |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-2273096-3 Datasheet
Download the complete datasheet for TE Connectivity 1-2273096-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

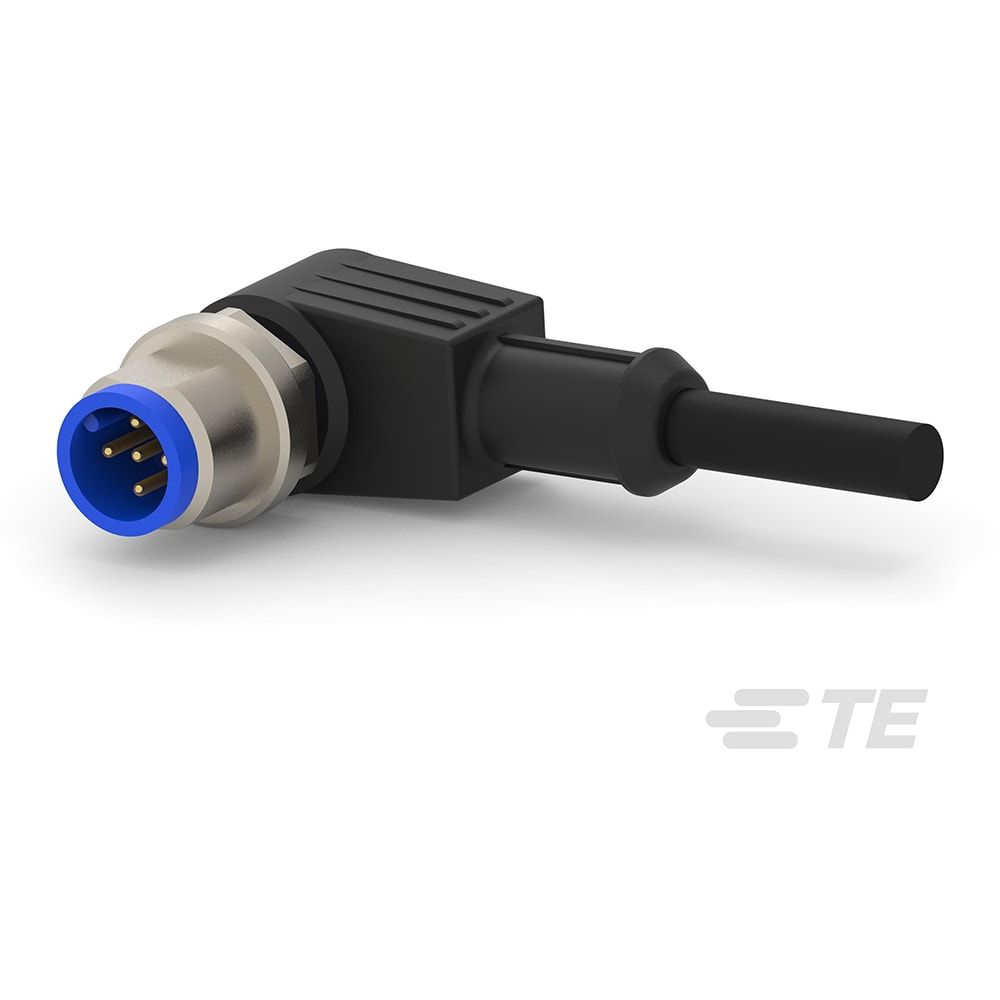

Product Images
