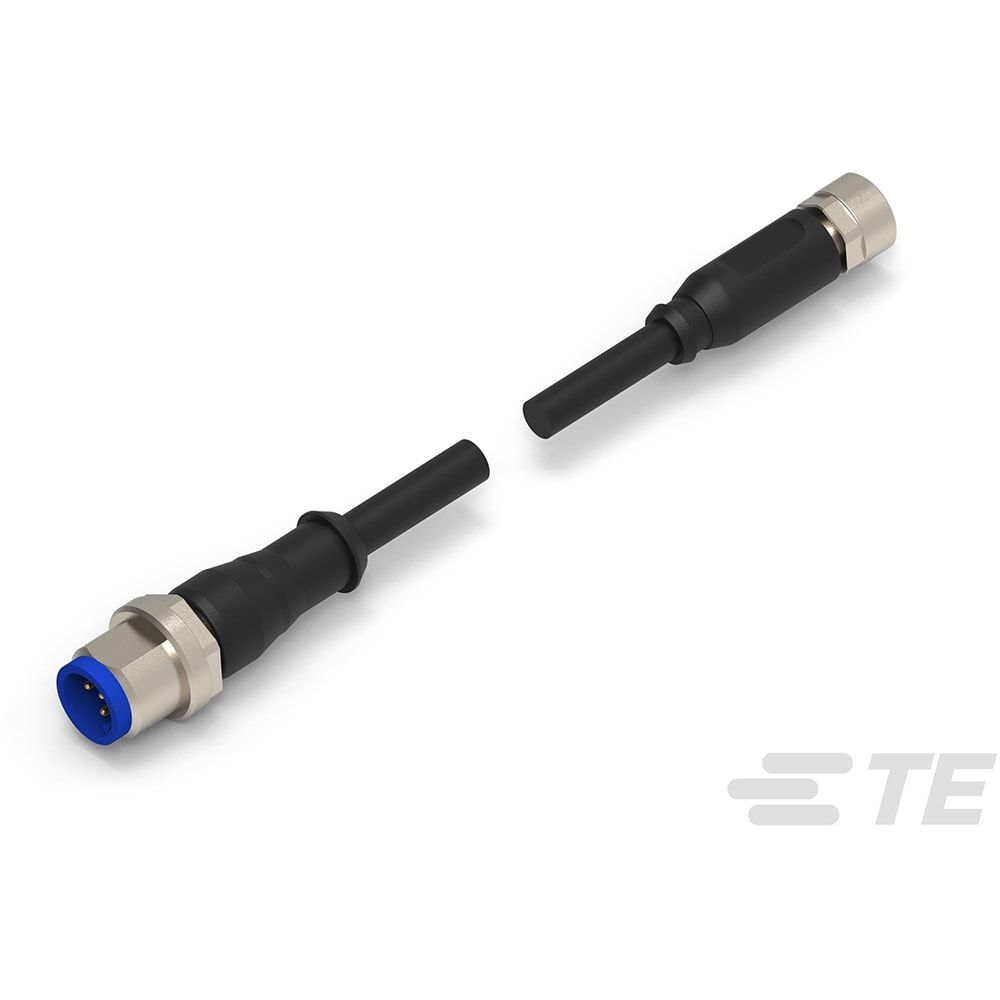

M8 straight socket to M12 straight plug assembly, featuring a 4-position, 4-conductor configuration with 22AWG wire. This unshielded cable assembly offers a 4A current rating and 30V voltage rating, with a temperature range of -30°C to 80°C. The PVC insulation and jacket provide IP65, waterproof, water-resistant, and dust-tight protection. The assembly is RoHS compliant and lead-free.
Voltage Rating30V
Current Rating4A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 1-2273111-4 technical specifications.
General
| Color | Black |
| Connector Type A | Receptacle |
| Connector Type B | Plug, M12 |
| Contact Current Rating | 4A |
| Current Rating | 4A |
| ELV | Compliant |
| Gender | Female to Male |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Lead Free | Lead Free |
| Length | 1.5m |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Mount | Free Hanging |
| Number of Conductors | 3 |
| Number of Contacts | 4 |
| Number of Cores | 4 |
| Number of Positions | 4 |
| Package Quantity | 25 |
| Packaging | Box |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M8, M12 |
| Shielding | Unshielded |
| Voltage Rating | 30V |
| Wire/Cable Color | Black |
| Wire/Cable Diameter | 0.188inch |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | PVC |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-2273111-4 Datasheet
Download the complete datasheet for TE Connectivity 1-2273111-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
