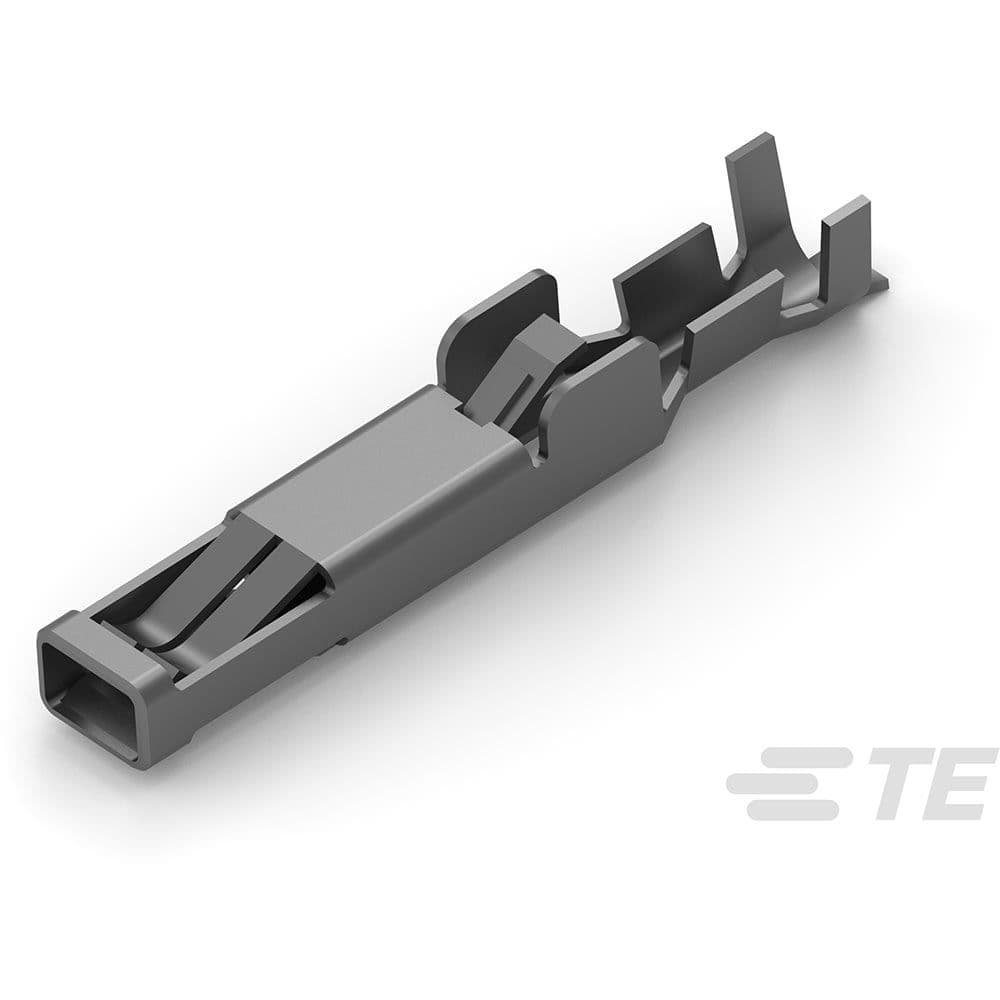

Female power contact for wire-to-board connector systems, featuring a straight, cable mount orientation. Designed for 16-20 AWG wire, this contact offers a 15A current rating and a gold-plated copper alloy construction with nickel underplating. Operating temperature range is -30°C to 105°C, with a maximum insulation diameter of 0.11 inches. Packaged in tape and reel for 4500 units, this RoHS and ELV compliant component is unshielded.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1-316458-2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 1-316458-2 technical specifications.
| Connector System | Wire-to-Board |
| Contact Current Rating | 15A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Power |
| Depth | 3.75mm |
| ELV | Compliant |
| Gender | Female |
| Height | 0.152inch |
| Insulation Diameter | 0.11inch |
| Length | 24.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -30°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 4500 |
| Packaging | Tape and Reel |
| Pitch | 12mm |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | Crimp |
| Underplate Material | Nickel |
| Width | 4mm |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 20AWG |
| RoHS | Compliant |
