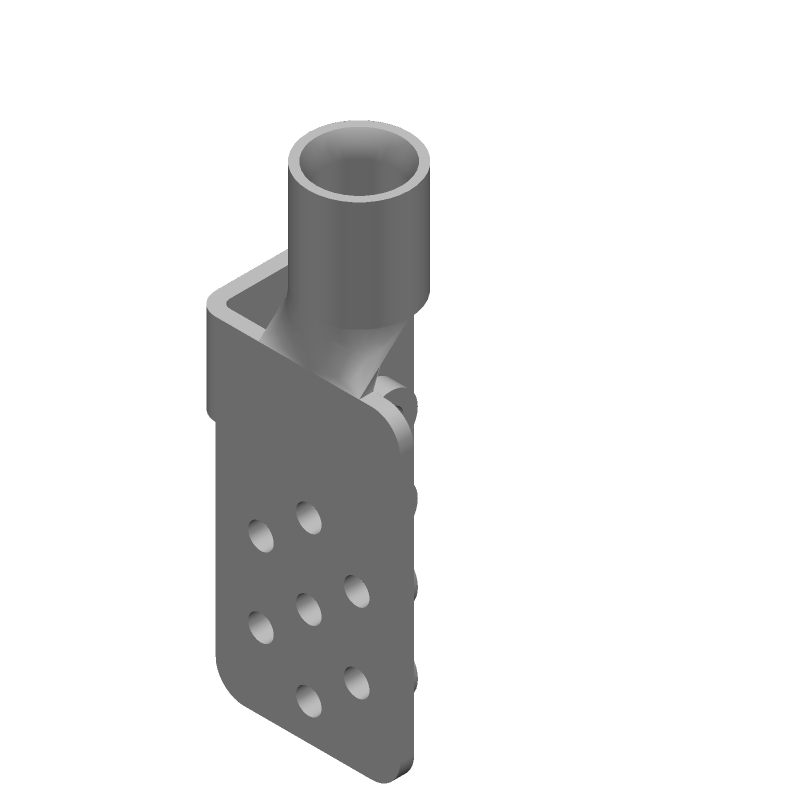

This general purpose terminal is made from copper with a tin contact plating. It is compliant with ELV regulations and RoHS standards. The terminal is non-insulated and has a wire termination type. It is available in a packaging quantity of 500 units per box.
Quick Jump:
Technical Specifications
TE Connectivity 1-330716-2 technical specifications.
General
| Contact Material | Copper |
| Contact Plating | Tin |
| ELV | Compliant |
| Insulation | Non-Insulated |
| Lead Free | Not Applicable |
| Length | 1.068inch |
| Material | Copper |
| Package Quantity | 500 |
| Packaging | Box |
| Plating | Copper |
| RoHS Compliant | Yes |
| Series | Solistrand, Termi-Foil |
| Termination | Wire |
| Wire Gauge (Max) | 12AWG |
| Wire Gauge (Min) | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-330716-2 Datasheet
Download the complete datasheet for TE Connectivity 1-330716-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
