9-position, 3-row wire-to-wire connector with male pin contacts and a natural colored housing. Features a 28A current rating, 250V voltage rating, and operates within a -67°C to 221°C temperature range. Designed for panel or cable mounting with a 6.1mm pitch and straight orientation, accommodating wire gauges from 10AWG to 20AWG. This RoHS compliant component utilizes crimp termination and is packaged in bags of 200.
Voltage Rating250V
Current Rating28A
MountingPanel, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1-480673-0 technical specifications.
General
| Color | Natural |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Retention | No (Without) |
| Contact Type | Male Pin |
| Current Rating | 28A |
| Depth | 28.7mm |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Housing Color | Natural |
| Length | 28.7mm |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Cable |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 200 |
| Packaging | Bag |
| Pitch | 6.1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 6.1inch |
| Sealable | No (Without) |
| Series | MATE-N-LOK |
| Termination | Crimp |
| Voltage Rating | 250V |
| Width | 23.11mm |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-480673-0 Datasheet
Download the complete datasheet for TE Connectivity 1-480673-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

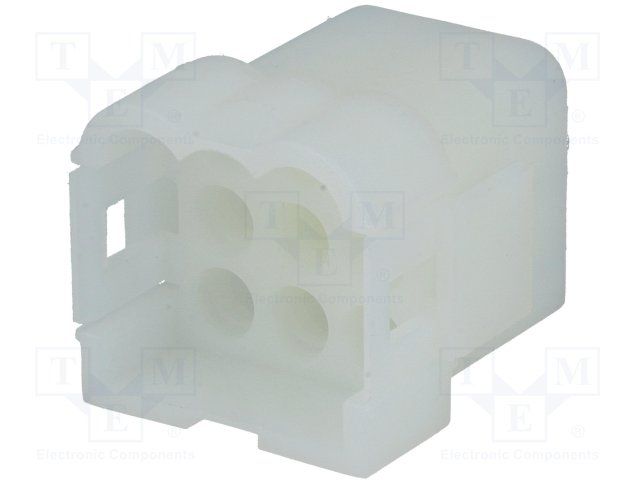

Product Images
