15-position, 3-row wire-to-wire power connector receptacle with a 6.35mm pitch. Features a straight, panel-mount orientation and a 19A current rating at 600V AC. Constructed from natural-colored nylon with a UL94 V-2 flammability rating. Operates within a temperature range of -67°C to 221°C. Compliant with RoHS and VDE standards.
Voltage Rating600V
Current Rating19A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 1-480711-0 technical specifications.
General
| Approvals | CSA |
| Color | Natural, Beige |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| Current Rating | 19A |
| Depth | 27.43mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Height | 25.9mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 33.02mm |
| Material | Nylon |
| Max Current Rating | 19A |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Panel |
| Number of Circuits | 15 |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Panel Thickness | 2.29mm |
| Pitch | 6.35mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.25mm |
| Sealable | No (Without) |
| Series | Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Width | 20.32mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-480711-0 Datasheet
Download the complete datasheet for TE Connectivity 1-480711-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

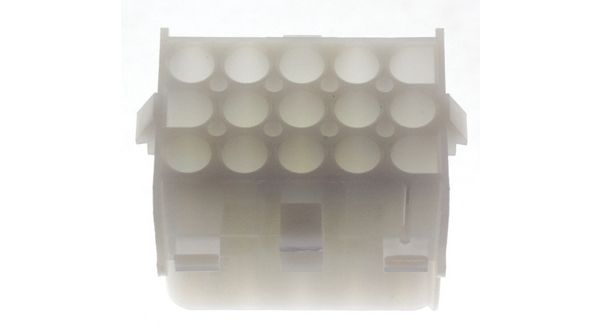

Product Images
