5-position, straight, receptacle power connector for wire-to-wire applications. Features a 19A current rating, 600V voltage rating, and operates within a -55°C to 125°C temperature range. Constructed from natural colored Nylon, this connector has a 6.35mm pitch and is designed for panel mounting up to 2.29mm thick. It supports wire gauges from 30AWG to 14AWG and is UL94 V-2 flammability rated.
Voltage Rating600V
Current Rating19A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 1-480764-0 technical specifications.
General
| Approvals | CSA |
| Color | Natural, Beige |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| Current Rating | 19A |
| Depth | 27.43mm |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Housing Color | Natural |
| Length | 33.02mm |
| Material | Nylon |
| Max Current Rating | 19A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Panel |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Panel Thickness | 2.29mm |
| Pitch | 6.35mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Width | 7.62mm |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-480764-0 Datasheet
Download the complete datasheet for TE Connectivity 1-480764-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

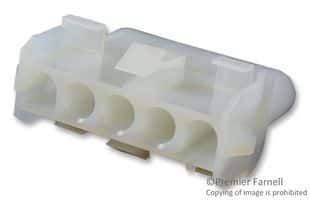

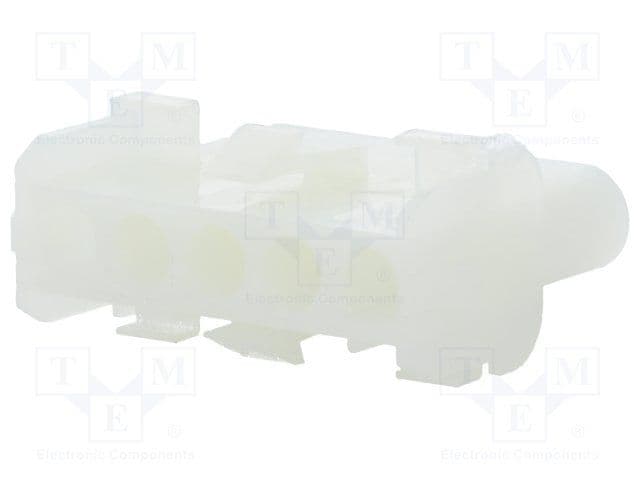

Product Images
