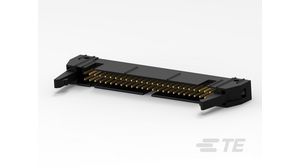

50 Pos 2.54mm Shrouded Header, Straight, Thru-Hole, 1A, Gold

TE Connectivity

1-5102321-0

Name: 1-5102321-0 TE Connectivity
Brand: TE Connectivity
SKU: 1-5102321-0

50 Pos 2.54mm Shrouded Header, Straight, Thru-Hole, 1A, Gold

50-position, 2-row shrouded header with 2.54mm pitch for wire-to-board applications. Features male pin contacts made of copper alloy with gold or gold-palladium mating finish and gold/tin plating. Straight, through-hole mounting orientation with a 3.94mm contact post length. Maximum operating temperature of 105°C and 250V AC voltage rating. UL94 V-0 flammability rating and lead-free construction.

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1-5102321-0 technical specifications.

General

Board Standoff	No (Without)
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Finish - Mating	Gold or Gold-Palladium
Contact Gender	Male
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Contact Post Length	3.94mm
Contact Shape	Square
Contact Type	Male Pin
Depth	8.53mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	13.94mm
Housing Color	Black
Insulation Color	Black
Lead Free	Lead Free
Length	3.26inch
Mating Alignment	Yes (With)
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	50
Number of Positions	50
Number of Rows	2
Orientation	Straight
Package Quantity	18
Packaging	Tray
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	3.18mm
Pitch	2.54mm
Plating Thickness	0.76um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	No
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
Voltage Rating (AC)	250V
