50-position, 2-row male pin header for wire-to-board applications. Features a 2.54mm pitch and straight, vertical mounting orientation with through-hole termination. Offers a 1A contact current rating, gold or gold-palladium mating contact finish, and copper alloy contact material with gold and tin plating. Operates within a -65°C to 105°C temperature range and has a 250V AC maximum voltage rating. Black housing and insulation, UL94 V-0 flammability rating, and lead-free construction.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-5103309-0 technical specifications.
General
Board Standoff
No (Without)
Color
Black
Connector System
Wire-to-Board
Contact Current Rating
1A
Contact Finish - Mating
Gold or Gold-Palladium
Contact Gender
Male
Contact Material
Copper Alloy
Contact Plating
Gold, Tin
Contact Post Length
0.12inch
Contact Shape
Square
Contact Type
Male Pin
Current Rating
1A
Depth
9.14mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
8.813mm
Housing Color
Black
Insulation Color
Black
Lead Free
Lead Free
Length
2.3inch
Mating Alignment
Yes (With)
Mating Connector Lock
No (Without)
Mating Retention
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
50
Number of Positions
50
Number of Rows
2
Orientation
Straight
Package Quantity
35
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
2.54mm
Series
AMP-LATCH
Shrouded
Yes (With)
Shrouded End Dimension
3.81mm
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-5103309-0 Datasheet
Download the complete datasheet for TE Connectivity 1-5103309-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

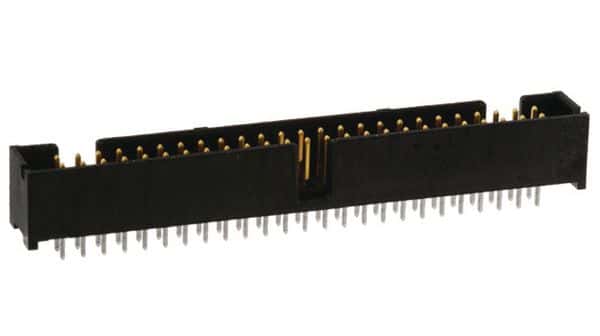

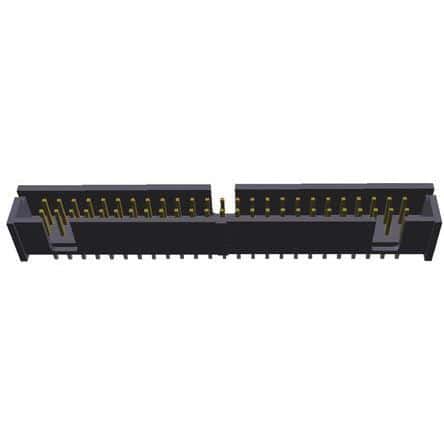

Product Images
