9 Pos D-Sub Connector, Female, Straight, Solder, Gold/Tin Plated

TE Connectivity

1-5747150-4

Name: 1-5747150-4 TE Connectivity
Brand: TE Connectivity
SKU: 1-5747150-4

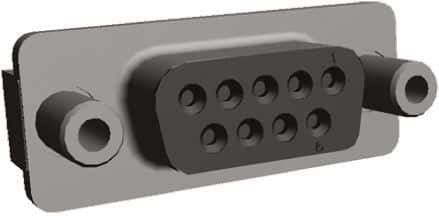

9 Pos D-Sub Connector, Female, Straight, Solder, Gold/Tin Plated

9-position, 2-row D-Subminiature connector with straight, vertical PCB mounting orientation. Features gold-plated bronze signal contacts with a round shape and 0.125-inch post length, terminated via solder. Metal steel shell, black housing, and polyester dielectric material ensure durability. Rated for 250V AC/DC, with a maximum operating temperature of 105°C and a flammability rating of UL94 V-0. Includes mating connector lock and PCB mount retention.

PackageMetal

Voltage Rating125V

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1-5747150-4 technical specifications.

General

Approvals	UL, CSA
Body Material	Metal, Steel
Package/Case	Metal
Color	Black
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	0.125inch
Contact Shape	Round
Contact Type	Signal
Depth	12.55mm
Dielectric Material	Polyester
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Housing Color	Black
Lead Free	Lead Free
Length	30.89mm
Mating Connector Lock	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (AC)	250V
Max Supply Voltage (DC)	250V
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	250.25kV
Mount	Through Hole
Number of Contacts	9
Number of Ports	1
Number of Positions	9
Number of Rows	2
Orientation	Straight
Package Quantity	17
Packaging	Rail/Tube
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	2.36mm
Pitch	0.108inch
Plating	Tin
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	AMPLIMITE HD-20
Shell Material	Steel
Shell Size	1
Termination	Solder
Voltage Rating	125V
Width	5.99mm
