Standard D-Subminiature Connector, 9 Position, 2 Rows, Male, Straight Orientation, Through Hole Mount. Features metal body and shell, brass contacts with gold and tin plating, and thermoplastic dielectric. Rated for 250V AC/DC, with a maximum operating temperature of 105°C. Compliant with RoHS and ELV directives, UL recognized for flammability rating UL94 V-0. Includes mating connector lock and PCB mount retention.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-5747871-6 technical specifications.
General
Approvals
UL
Body Material
Metal
Package/Case
Metal
Circuit Application
Signal
Color
Black
Contact Material
Brass
Contact Plating
Gold, Tin
Contact Post Length
0.17inch
Contact Shape
Round
Contact Type
Signal
Depth
12.54mm
Dielectric Material
Thermoplastic
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Lead Length
4.318mm
Length
30.81mm
Material
Metal
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Supply Voltage (DC)
250V
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Straight
Package Quantity
17
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.125inch
Pitch
0.108inch
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
2.8448mm
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
1
Termination
Solder
Voltage Rating
125V
Width
0.494inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-5747871-6 Datasheet
Download the complete datasheet for TE Connectivity 1-5747871-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

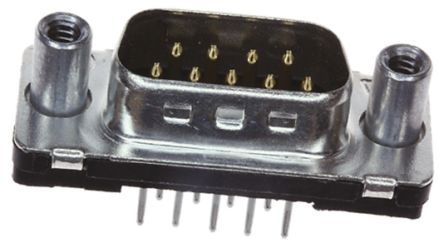

Product Images
