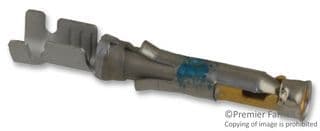

Female signal socket contact for cable mounting, featuring a straight orientation and crimp termination. Constructed from brass with gold plating over nickel underplate, it supports 16-18 AWG discrete wire and has a maximum current rating of 13A. This unshielded contact offers a 3.81mm pitch and a 2.54mm insulation diameter, with a plating thickness of 380nm. It is RoHS compliant and supplied as loose pieces.
Current Rating13A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1-66101-7 technical specifications.
General
| Circuit Application | Signal |
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Style | Socket |
| Contact Type | Signal |
| Current Rating | 13A |
| Depth | 3.68mm |
| ELV | Compliant |
| Gender | Female |
| Insulation Diameter | 2.54mm |
| Lead Free | Not Applicable |
| Material | Brass |
| Max Current Rating | 13A |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Loose Piece |
| Pitch | 3.81mm |
| Plating | Gold |
| Plating Thickness | 380nm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Multimate, Type III+ |
| Shielding | Unshielded |
| Termination | Crimp |
| Underplate Material | Nickel |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 16AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-66101-7 Datasheet
Download the complete datasheet for TE Connectivity 1-66101-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
