Shielded, straight male D-Subminiature plug assembly with 9 positions and 2 rows. Features a metal body and shell, glass dielectric, and bronze contacts with gold and tin plating for signal applications. Operates within a temperature range of -55°C to 105°C with a maximum AC supply voltage of 250V. Termination is IDC, supporting wire gauges from 20AWG to 22AWG for round wire. Includes mating connector lock and is RoHS compliant.
PackageMetal
Voltage Rating250V
MountingFree Hanging, Panel
Quick Jump:
Technical Specifications
TE Connectivity 1-745492-9 technical specifications.
General
| Body Material | Metal |
| Package/Case | Metal |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin |
| Contact Type | Signal |
| Depth | 12.92mm |
| Dielectric Material | Glass |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Diameter | 1.52mm |
| Length | 31.19mm |
| Material | Metal |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (AC) | 250V |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging, Panel |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 140 |
| Packaging | Bulk |
| Pitch | 0.054inch |
| Plating | Tin |
| Preloaded | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPLIMITE HDE-20 |
| Shell Material | Steel |
| Shell Size | 1 |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 250V |
| Width | 22.58mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-745492-9 Datasheet
Download the complete datasheet for TE Connectivity 1-745492-9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

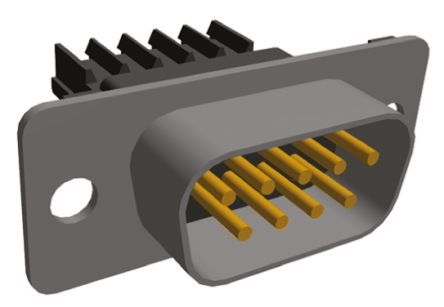

Product Images
