68-position, right-angle SCSI connector with IDC termination for ribbon cable. Features a 1.27mm pitch, 68 terminals, and a single port. Constructed with a plastic body, steel shell, and bronze contacts plated with gold, tin, and lead. Rated for 1A current and 30V voltage, operating between -55°C and 105°C. RoHS compliant and UL94 V-0 flammability rated.
Voltage Rating30V
Current Rating1A
MountingPanel, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1-749656-2 technical specifications.
General
| Body Material | Plastic |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin, Lead |
| Contact Type | Signal |
| Current Rating | 1A |
| Depth | 15.14mm |
| Dielectric Material | Thermoplastic |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Insulation Diameter | 0.91mm |
| Lead Free | Lead Free |
| Length | 63.88mm |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Panel, Cable |
| Number of Contacts | 68 |
| Number of Ports | 1 |
| Number of Positions | 68 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 8 |
| Packaging | Rail/Tube |
| Pitch | 0.05inch |
| Plating | Copper |
| Preloaded | Yes |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPLIMITE .050 III |
| Shell Material | Steel |
| Shielding | Unshielded |
| Termination | IDC |
| Voltage Rating | 30V |
| Width | 10.31mm |
| Wire/Cable Type | Ribbon |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-749656-2 Datasheet
Download the complete datasheet for TE Connectivity 1-749656-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

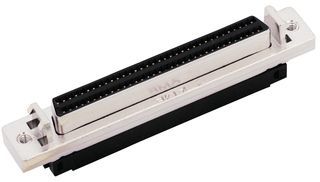

Product Images
