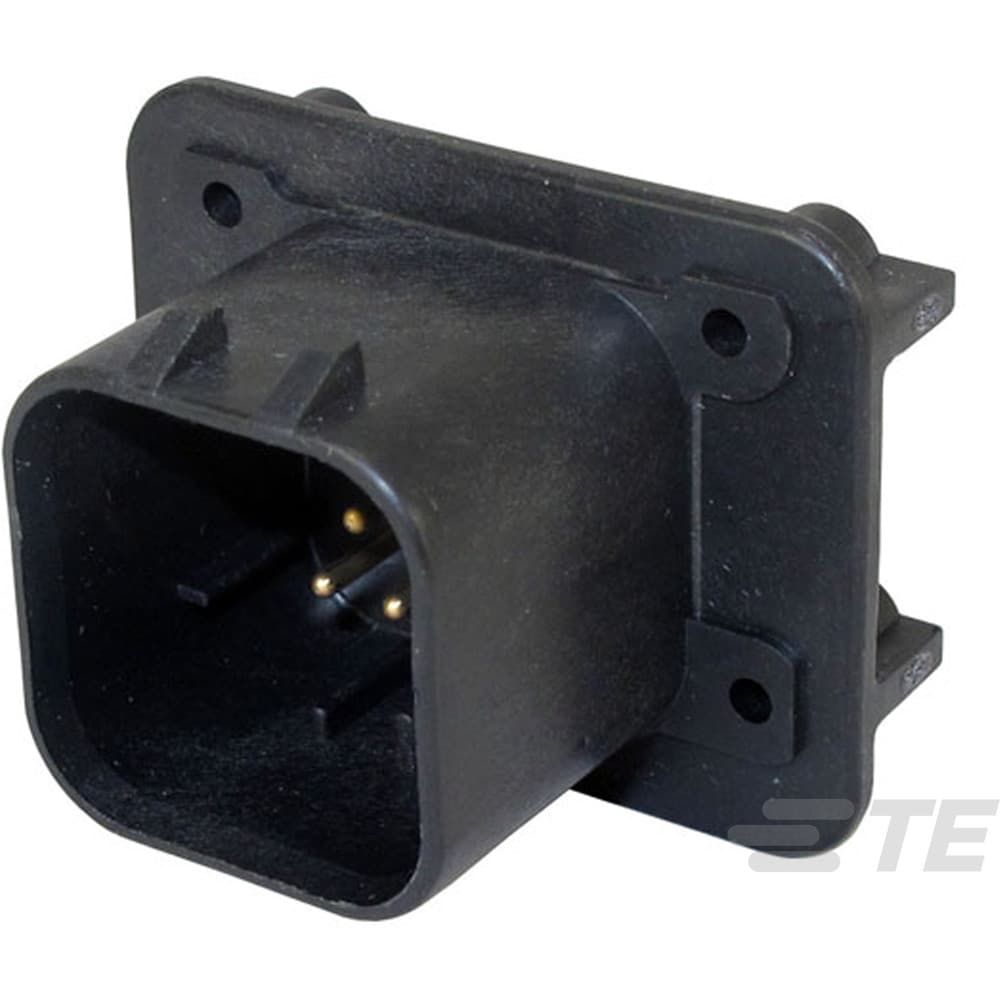

Automotive-grade shrouded header, 8 positions, 3 rows, 2mm pitch, right-angle, through-hole solder termination. Features 11 circuits and 11 contacts, with 8 signal positions. Black, UL94 V-0 flammability rating, operating temperature range of -40°C to 125°C, and a maximum voltage rating of 250V AC. Includes PCB mount alignment and retention, with a sealable design.
Quick Jump:
Technical Specifications
TE Connectivity 1-776279-1 technical specifications.
General
| Circuit Application | Power |
| Color | Black |
| Connector System | Wire-to-Device |
| Flammability Rating | UL94 V-0 |
| Length | 40.8mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Number of Circuits | 11 |
| Number of Contacts | 11 |
| Number of Positions | 8 |
| Number of Rows | 3 |
| Number of Signal Positions | 8 |
| Package Quantity | 1 |
| Packaging | Bulk |
| PCB Mount Alignment | Yes (With) |
| PCB Mount Retention | With |
| PCB Thickness | 0.062inch |
| Pitch | 0.157inch |
| Radiation Hardening | No |
| Sealable | Yes (With) |
| Shielding | Unshielded |
| Tab Thickness | 1.3mm |
| Termination | Solder |
| Width | 1.264inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-776279-1 Datasheet
Download the complete datasheet for TE Connectivity 1-776279-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
