8-position, 2-row wire-to-board power connector with male pin contacts. Features a 9.5A current rating, 600V voltage rating, and gold-plated brass/copper alloy contacts. Straight, through-hole mounting with vertical PCB orientation and 4.14mm pitch. Nylon housing in white, rated UL94 V-0 for flammability. Operating temperature range from -67°C to 221°C.
Voltage Rating600V
Current Rating9.5A
MountingThrough Hole
Quick Jump:
Technical Specifications

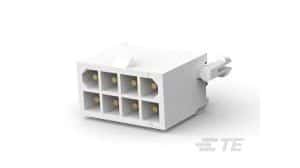

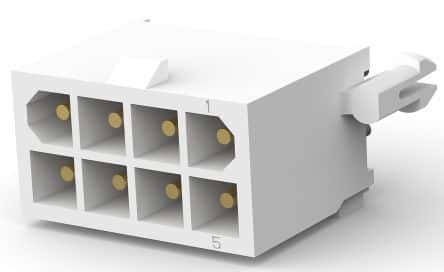

TE Connectivity 1-794065-1 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
White
Connector System
Wire-to-Board
Contact Current Rating
9.5A
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass, Copper Alloy
Contact Plating
Gold, Tin
Contact Retention
No (Without)
Contact Shape
Circular
Contact Type
Male Pin
Current Rating
9.5A
Depth
5.08mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
13.49mm
Housing Color
White
Insulation Color
White
Insulation Material
Nylon
Lead Free
Lead Free
Length
23.24mm
Material
Nylon
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Circuits
8
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Power Positions
8
Number of Rows
2
Orientation
Straight
Package Quantity
200
Packaging
Bag
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.062mm
Pitch
0.162inch
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.162mm
Sealable
No (Without)
Series
Mini-Universal MATE-N-LOK
Strain Relief
No (Without)
Termination
Solder
VDE Tested
No
Voltage Rating
600V
Width
9.83mm
Compliance
RoHS
Compliant
