Male signal and power contact for wire-to-wire connector systems. Features a straight, cable mount orientation with crimp termination for discrete wires. Rated for 600V and up to 10.5A contact current, accommodating 18-22AWG wire gauges. Constructed from brass with tin and gold plating over nickel underplate. Operates within a temperature range of -20°C to 105°C and is RoHS compliant.
Voltage Rating600V
Current Rating9.5A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1-794220-0 technical specifications.
General
| Approvals | UL |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 10.5A |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin, Gold |
| Contact Type | Signal |
| Current Rating | 9.5A |
| Depth | 3.81mm |
| ELV | Compliant |
| Gender | Male |
| Height | 4.42mm |
| Insulation Diameter | 0.094inch |
| Lead Free | Not Applicable |
| Length | 20.2mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 4500 |
| Packaging | Tape and Reel |
| Plating Thickness | 2.54um |
| RoHS Compliant | Yes |
| Series | Mini-Universal MATE-N-LOK II |
| Shielding | Unshielded |
| Termination | Crimp |
| Underplate Material | Nickel |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 22AWG |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-794220-0 Datasheet
Download the complete datasheet for TE Connectivity 1-794220-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

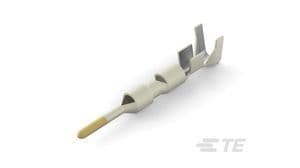

Product Images
