Female power contact for wire-to-wire connector systems, featuring a 5A current rating and 250V AC voltage rating. Designed for discrete wire termination with a 24-20 AWG wire gauge range. Contact material is bronze with tin, bright, and gold plating, and nickel underplate. Operating temperature range is -40°C to 221°C. This component is VDE approved, RoHS compliant, and UL94 V-0 flammability rated.
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1-794606-2 technical specifications.
General
| Approvals | VDE |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 5A |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin, Bright, Gold |
| Contact Type | Power |
| Current Rating | 5A |
| Depth | 2.67mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 1.93mm |
| Insulation Diameter | 1.52mm |
| Lead Free | Lead Free |
| Length | 13.73mm |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Cable |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 15000 |
| Packaging | Tape and Reel |
| Pitch | 3mm |
| Plating Thickness | 2.54um |
| RoHS Compliant | Yes |
| Series | Micro MATE-N-LOK |
| Termination | Crimp |
| Underplate Material | Nickel |
| Voltage Rating (AC) | 250V |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-794606-2 Datasheet
Download the complete datasheet for TE Connectivity 1-794606-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

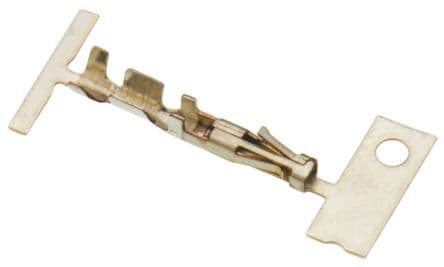

Product Images
