Female power contact for wire-to-wire connector systems, featuring a straight orientation and crimp termination. This component supports a 5A current rating and a 250V voltage rating, with a 3mm pitch. Constructed from bronze with tin and gold plating, it accommodates wire gauges from 24AWG to 20AWG and operates within a temperature range of -40°C to 221°C. The contact is RoHS compliant and designed for discrete wire applications.
Voltage Rating250V
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1-794610-2 technical specifications.
General
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 5A |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin, Gold |
| Contact Type | Power |
| Current Rating | 5A |
| Depth | 2.67mm |
| ELV | Compliant |
| Gender | Female |
| Height | 1.93mm |
| Insulation Diameter | 1.52mm |
| Lead Free | Lead Free |
| Length | 12.17mm |
| Material | Bronze |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Cable |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bag |
| Pitch | 3mm |
| Plating Thickness | 1.27um |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Micro MATE-N-LOK |
| Termination | Crimp |
| Underplate Material | Nickel |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-794610-2 Datasheet
Download the complete datasheet for TE Connectivity 1-794610-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

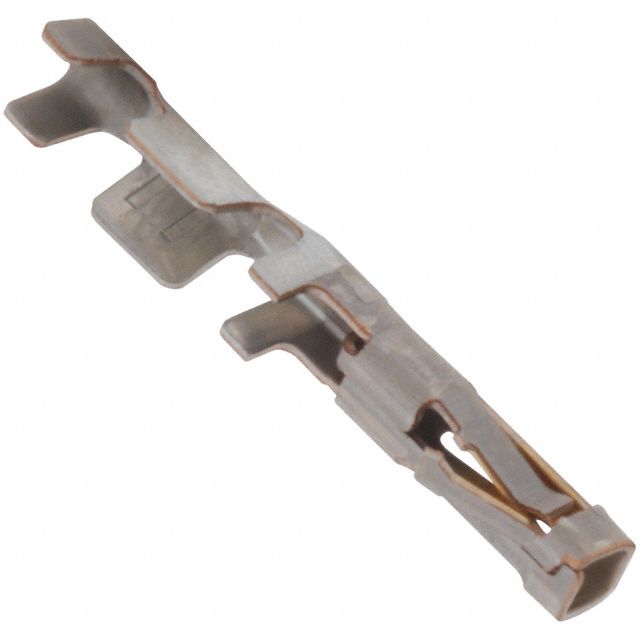

Product Images
