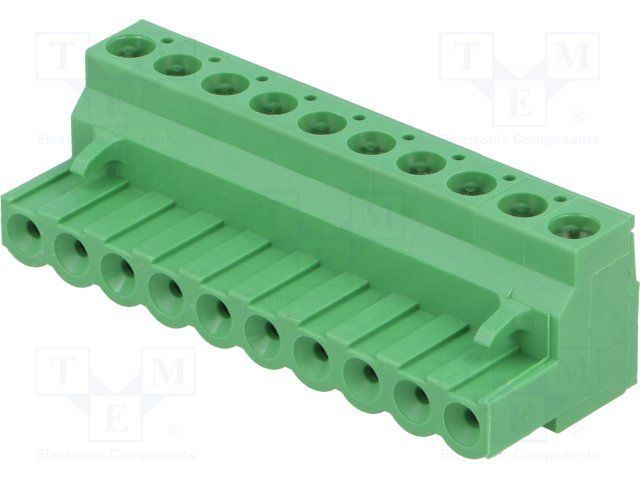

10-position, right-angle plug terminal block with a 5.08mm pitch. Features a 15A current rating and 300V voltage rating. Constructed with a green nylon housing and bronze contacts with tin plating. Offers through-hole mounting and side-stackable capability. Operating temperature range from -40°C to 110°C.
Voltage300V
Current15A
Voltage Rating300V
Current Rating15A
Quick Jump:
Technical Specifications
TE Connectivity 1-796634-0 technical specifications.
General
Color
Green
Contact Material
Bronze
Contact Plating
Tin
Current
15A
Current Rating
15A
Depth
18.4mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Green
Interlock
No (Without)
Lead Free
Lead Free
Length
50.8mm
Material
Nylon
Max Current Rating
15A
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
10
Number of Contacts
10
Number of Levels
1
Number of Poles
10
Number of Positions
10
Number of Positions Per Level
10
Number of Rows
1
Number of Ways
10
Orientation
Right Angle
Package Quantity
100
Packaging
Box
Pitch
5.08mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Shrouded
No (Without)
Side Stackable
Yes (With)
Termination
Screw
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-796634-0 Datasheet
Download the complete datasheet for TE Connectivity 1-796634-0 to view detailed technical specifications.
