1-84533-2

Datasheet

1.25mm Flex-to-Board Header, 12 Pos, Right Angle, 1A, 50V

TE Connectivity

1-84533-2

Name: 1-84533-2 TE Connectivity
Brand: TE Connectivity
SKU: 1-84533-2

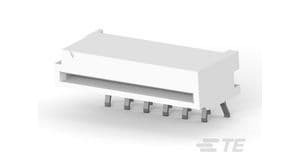

1.25mm Flex-to-Board Header, 12 Pos, Right Angle, 1A, 50V

1.25mm pitch flex-to-board connector with 12 positions and 12 contacts. Features right-angle, through-hole mounting with a female gender and white housing. Offers 1A current rating, tin bright plating on bronze contacts, and a 50V voltage rating. Designed for flat flex wire/cable types, with a shrouded, unshielded configuration and a maximum operating temperature of 176°C.

Voltage Rating50V

Current Rating1A

MountingThrough Hole

Quick Jump:

Chat with Datasheet

Technical Specifications

TE Connectivity 1-84533-2 technical specifications.

General

Connector System	Flex-to-Board
Contact Current Rating	1A
Contact Location	Top
Contact Material	Bronze
Contact Plating	Tin, Bright
Current Rating	1A
Depth	7.8mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	4.8mm
Housing Color	White
Length	0.7382inch
Mating Alignment	Yes (With)
Max Operating Temperature	176°C
Min Operating Temperature	-4°C
Mount	Through Hole
Number of Contacts	12
Number of Positions	12
Number of Rows	1
Orientation	Right Angle
Package Quantity	170
Packaging	Tray
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	1.6mm
Pitch	0.049inch
Plating Thickness	0.8um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Tail Length	3.2mm
Termination	Through Hole
Voltage Rating	50V
Width	8.8mm
Wire/Cable Type	Flat Flex
