Right-angle, through-hole flexible flat cable (FFC) connector with 16 positions and 16 contacts. Features a 1.25mm pitch and a 1A current rating. Designed for flex-to-board applications, this female connector has a tin-plated bronze contact material and a white, UL94 V-0 rated housing. It supports a 1.6mm PCB thickness and operates within a temperature range of -4°C to 176°C.
Voltage Rating50V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-84533-6 technical specifications.
General
Connector System
Flex-to-Board
Contact Current Rating
1A
Contact Location
Top
Contact Material
Bronze
Contact Plating
Tin, Bright
Current Rating
1A
Depth
8.6mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Height
4.8mm
Housing Color
White
Length
23.75mm
Mating Alignment
Yes (With)
Max Operating Temperature
176°C
Min Operating Temperature
-4°C
Mount
Through Hole
Number of Contacts
16
Number of Positions
16
Number of Rows
1
Orientation
Right Angle
Package Quantity
1400
Packaging
Box
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.6mm
Pitch
0.049inch
Plating Thickness
0.8um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
FFC
Shielding
Unshielded
Shrouded
Yes (With)
Tail Length
3.2mm
Termination
Through Hole
Voltage Rating
50V
Width
8.8mm
Wire/Cable Type
Flat Flex
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-84533-6 Datasheet
Download the complete datasheet for TE Connectivity 1-84533-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

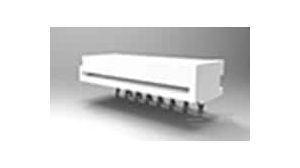

Product Images
