Right-angle, surface-mount FFC/FPC connector with 11 positions and 1mm pitch. Features a ZIF/LIF design for flex-to-board applications, a 1A current rating, and 200V voltage rating. Contacts are bronze with tin/bright plating, housed in natural-colored nylon, glass, and polyamide. Operates within a -40°C to 85°C temperature range, with UL94 V-0 flammability. Supplied in tape and reel packaging.
Voltage Rating200V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 1-84953-1 technical specifications.
General
| Actuator Color | Black |
| Actuator Material | Nylon, Glass, Polyamide |
| Connector System | Flex-to-Board |
| Contact Current Rating | 1A |
| Contact Location | Top |
| Contact Material | Bronze |
| Contact Plating | Tin, Bright |
| Current Rating | 1A |
| Depth | 7.3mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 2.56mm |
| Housing Color | Natural |
| Length | 18.92mm |
| Mating Alignment | Yes (With) |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 200V |
| Mount | Surface Mount |
| Number of Contacts | 11 |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| Pitch | 0.039inch |
| Plating Thickness | 2um |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Shielding | Unshielded |
| Shrouded | Yes (With) |
| Termination | SMD/SMT |
| Voltage Rating | 200V |
| Width | 0.2575inch |
| Wire/Cable Type | Flat Flex |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-84953-1 Datasheet
Download the complete datasheet for TE Connectivity 1-84953-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

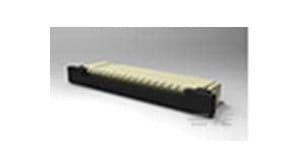

Product Images
