1-84953-2

Datasheet

12 Pos 1A 200V 0.039" Pitch Flex-to-Board Header, Female, SMT

TE Connectivity

1-84953-2

Name: 1-84953-2 TE Connectivity
Brand: TE Connectivity
SKU: 1-84953-2

12 Pos 1A 200V 0.039" Pitch Flex-to-Board Header, Female, SMT

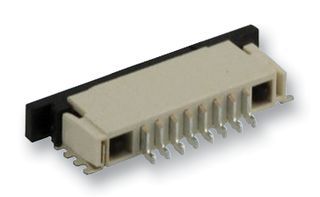

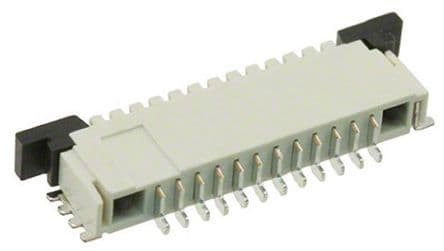

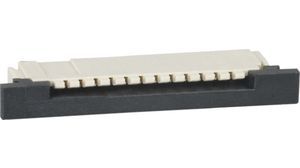

1mm pitch, right-angle flex-to-board header assembly featuring 12 positions and 12 contacts. This female connector offers a 1A current rating and 200V voltage rating, with tin-bright plated bronze contacts. Constructed with a natural colored Nylon, Glass, Polyamide housing and a black actuator, it supports surface mount termination and includes PCB mount retention. Operating within a -40°C to 85°C range, this UL94 V-0 flammability rated component is RoHS compliant and packaged on tape and reel.

Voltage Rating200V

Current Rating1A

MountingSurface Mount

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

TE Connectivity 1-84953-2 technical specifications.

General

Actuator Color	Black
Actuator Material	Nylon, Glass, Polyamide
Connector System	Flex-to-Board
Contact Current Rating	1A
Contact Location	Top
Contact Material	Bronze
Contact Plating	Tin, Bright
Current Rating	1A
Depth	5.4mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	2.56mm
Housing Color	Natural
Lead Free	Lead Free
Length	0.7843inch
Mating Alignment	Yes (With)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Contacts	12
Number of Positions	12
Number of Rows	1
Orientation	Right Angle
Package Quantity	1200
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
Pitch	0.039inch
Plating Thickness	2um
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	200V
Width	0.2575inch
Wire/Cable Type	Flat Flex
