1-84953-5

Datasheet

15 Pos 1mm Pitch FPC Receptacle, Right Angle, 1A, 200V, SMT

TE Connectivity

1-84953-5

Name: 1-84953-5 TE Connectivity
Brand: TE Connectivity
SKU: 1-84953-5

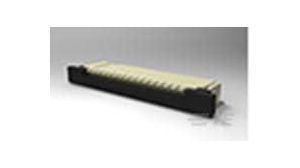

15 Pos 1mm Pitch FPC Receptacle, Right Angle, 1A, 200V, SMT

1mm pitch flex-to-board receptacle with 15 positions and 15 contacts. Features a right-angle orientation, surface mount termination, and a top contact location. Rated for 1A current and 200V voltage, with bronze contacts plated in tin, bright. Housing is natural colored Nylon, Glass, Polyamide with a black actuator. Compliant with RoHS and ELV standards, and UL94 V-0 flammability.

Voltage Rating200V

Current Rating1A

MountingSurface Mount

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

TE Connectivity 1-84953-5 technical specifications.

General

Actuator Color	Black
Actuator Material	Nylon, Glass, Polyamide
Connector System	Flex-to-Board
Contact Current Rating	1A
Contact Location	Top
Contact Material	Bronze
Contact Plating	Tin, Bright
Current Rating	1A
Depth	7.3mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	2.56mm
Housing Color	Natural
Length	22.92mm
Mating Alignment	Yes (With)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	200V
Mount	Surface Mount
Number of Contacts	15
Number of Positions	15
Number of Rows	1
Orientation	Right Angle
Package Quantity	1200
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
Pitch	0.039inch
Plating Thickness	2um
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	FPC
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	200V
Width	0.2575inch
Wire/Cable Type	Flat Flex
