16-position, 2-row rectangular wire housing with 2.54mm pitch. Features female socket contacts made of gold-plated copper, rated for 3A and 250V AC. Straight, cable mount receptacle with mating alignment, lock, and retention. Operates from -65°C to 105°C, UL94 V-0 flammability rated, and RoHS compliant. Suitable for wire gauges 20-30AWG.
Voltage Rating250V
Current Rating3A
MountingFree Hanging, Cable, PCB
Quick Jump:
Technical Specifications
TE Connectivity 1-87631-2 technical specifications.
General
Approvals
CSA
Color
Black
Contact Current Rating
3A
Contact Gender
Female
Contact Material
Copper
Contact Plating
Gold
Contact Type
Female Socket
Current Rating
3A
Depth
15.24mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
3.14mm
Housing Color
Black
Lead Free
Lead Free
Length
20.32mm
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable, PCB
Number of Contacts
16
Number of Positions
16
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
AMPMODU MOD IV
Strain Relief
No (Without)
Termination
Crimp
Voltage Rating
250V
Voltage Rating (AC)
250V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-87631-2 Datasheet
Download the complete datasheet for TE Connectivity 1-87631-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

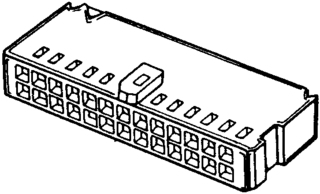

Product Images
