Male, straight orientation, pin contact style connector for signal applications. Features bronze contacts with gold and tin plating, rated for 2A max current and operating temperatures from -65°C to 105°C. Designed for flat flex cable termination via solder, with a 2.54mm pitch. Supplied on tape and reel, this component is RoHS and ELV compliant.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1-88997-2 technical specifications.
General
| Circuit Application | Signal |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin |
| Contact Style | Pin |
| Contact Type | N/A |
| Depth | 1.82mm |
| ELV | Compliant |
| Gender | Male |
| Height | 1.82mm |
| Lead Free | Lead Free |
| Length | 9.52mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 15000 |
| Packaging | Tape and Reel |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Termination | Solder |
| Wire/Cable Type | Flat Flex |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-88997-2 Datasheet
Download the complete datasheet for TE Connectivity 1-88997-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

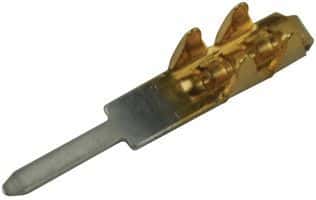

Product Images
