4-position, 2.5mm pitch wire-to-wire circular connector with female crimp contacts. Features a straight, unshielded, black PBT housing and a polybutylene material construction. Rated IP67, waterproof, dust-tight, and water-resistant, operating from -40°C to 248°C. This RoHS compliant connector is designed for free hanging, cable mount applications.
MountingFree Hanging, Cable
PolarityNo
Quick Jump:
Technical Specifications
TE Connectivity 1-967325-2 technical specifications.
General
Color
Black
Connector System
Wire-to-Wire
Contact Shape
Circular
Contact Type
CRIMP
Depth
31mm
ELV
Compliant
Flammability Rating
UL94 HB
Gender
Female
Height
32.8mm
Housing Color
Black
Hybrid Connector
No
Lead Free
Not Applicable
Length
31mm
Material
Polybutylene
Max Operating Temperature
248°C
Min Operating Temperature
-40°C
Mount
Free Hanging, Cable
Number of Contacts
4
Number of Positions
4
Orientation
Straight
Package Quantity
500
Packaging
Box
Pitch
0.276inch
Polarized
No
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight, Water Resistant, IP69
RoHS Compliant
Yes
Sealable
Yes (With)
Series
2.5mm System
Serviceable
No
Shell Material
PBT
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Crimp
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-967325-2 Datasheet
Download the complete datasheet for TE Connectivity 1-967325-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

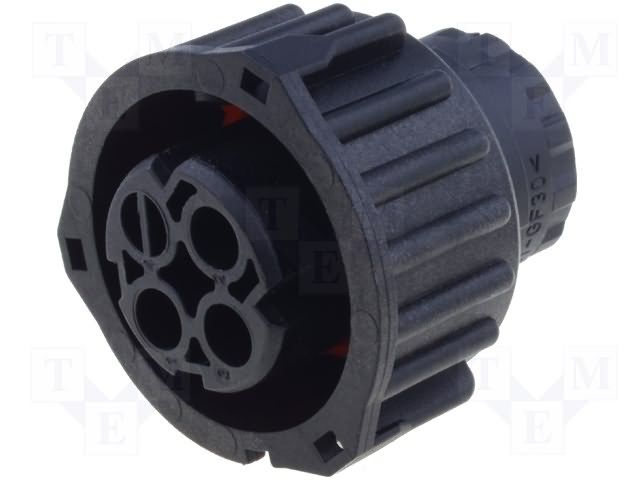

Product Images
