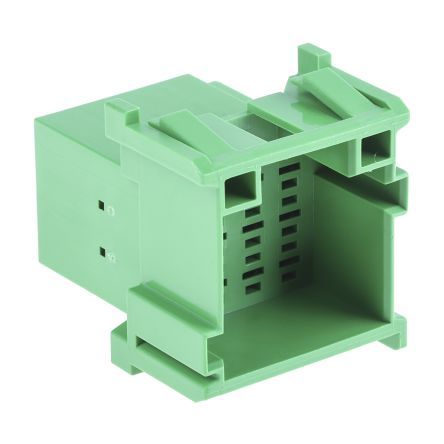

12-position, 3-row male rectangular connector for signal applications. Features a 5mm pitch and 2.8mm mating tab width, with straight orientation and crimp termination. Constructed from green polyamide housing with copper alloy, copper, and tin contacts plated in tin. Operates within a temperature range of -40°C to 248°C and is RoHS compliant. Designed for free hanging or panel mounting.
MountingFree Hanging, Panel
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 1-967627-1 technical specifications.
General
| Circuit Application | Signal |
| Color | Green |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper, Tin |
| Contact Plating | Tin |
| Contact Type | Tab |
| Depth | 35.5mm |
| ELV | Compliant |
| Gender | Male |
| Height | 1.205inch |
| Housing Color | Green |
| Hybrid Connector | No |
| Lead Free | Not Applicable |
| Lead Pitch | 5mm |
| Length | 27.5mm |
| Material | Polyamide |
| Mating Tab Width | 0.11inch |
| Max Operating Temperature | 248°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Panel |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 950 |
| Packaging | Bag |
| Pitch | 5mm |
| Polarized | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.217inch |
| Sealable | No (Without) |
| Serviceable | No |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Width | 35.45mm |
| Wire/Cable Gauge | 13AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-967627-1 Datasheet
Download the complete datasheet for TE Connectivity 1-967627-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
