15-position, 3-row straight male pin connector for signal applications. Features a 2.8mm mating tab width and 5mm pitch, with a violet housing. Designed for wire-to-wire connection with crimp termination, operating between -40°C and 248°C. This free-hanging, polarized connector is RoHS compliant.
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 1-967628-1 technical specifications.
General
| Circuit Application | Signal |
| Color | Violet |
| Connector System | Wire-to-Wire |
| Contact Type | Male Pin |
| ELV | Compliant |
| Gender | Male |
| Height | 1.205inch |
| Housing Color | Violet |
| Hybrid Connector | No |
| Lead Free | Not Applicable |
| Length | 32.5mm |
| Mating Tab Width | 0.11inch |
| Max Operating Temperature | 248°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 800 |
| Packaging | Bag |
| Pitch | 5mm |
| Polarized | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.217inch |
| Sealable | No (Without) |
| Series | Junior Power Timer |
| Serviceable | No |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Width | 35.45mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-967628-1 Datasheet
Download the complete datasheet for TE Connectivity 1-967628-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

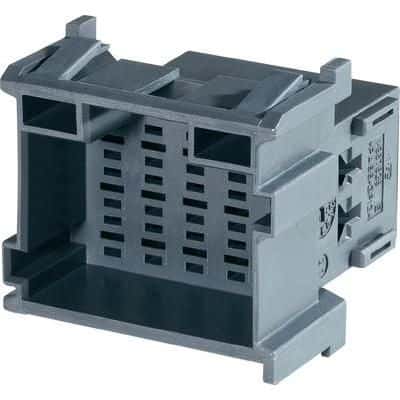

Product Images
