2-position, 2.54mm pitch wire-to-wire connector housing for signal applications. Features a straight, cable-mounted, free-hanging design with male pin contacts. Constructed from black PBT with UL94 HB flammability rating, this housing is RoHS compliant and lead-free.
MountingFree Hanging, Cable
PolarityNo
Quick Jump:
Technical Specifications
TE Connectivity 1-968699-1 technical specifications.
General
| Body Material | PBT |
| Circuit Application | Signal |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Type | Male Pin |
| Depth | 26.6mm |
| ELV | Compliant |
| Flammability Rating | UL94 HB |
| Gender | Male |
| Height | 0.323inch |
| Housing Color | Black |
| Hybrid Connector | No |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Mating Tab Width | 0.025inch |
| Mount | Free Hanging, Cable |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 7500 |
| Packaging | Box |
| Pitch | 2.54mm |
| Polarized | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Micro Quadlok |
| Serviceable | No |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Width | 1.047inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-968699-1 Datasheet
Download the complete datasheet for TE Connectivity 1-968699-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

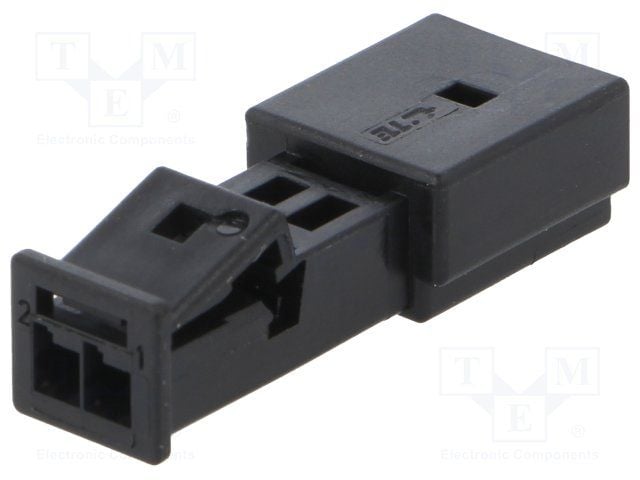

Product Images
