70-position, straight, female wire-to-wire connector housing for signal applications. Features a PBT body, black housing color, and 0.157-inch pitch with 0.232-inch row spacing. Designed for cable mounting with a 0.11-inch mating tab width, this sealable connector is RoHS compliant.
MountingCable
PolarityNo
Quick Jump:
Technical Specifications
TE Connectivity 1-968879-1 technical specifications.
General
| Body Material | PBT |
| Circuit Application | Signal |
| Color | Black |
| Connector System | Wire-to-Wire |
| Depth | 46mm |
| ELV | Compliant |
| Gender | Female |
| Height | 46mm |
| Housing Color | Black |
| Hybrid Connector | No |
| Lead Free | Not Applicable |
| Length | 5.341inch |
| Mating Tab Width | 0.11inch |
| Mount | Cable |
| Number of Contacts | 70 |
| Number of Positions | 70 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 66 |
| Pitch | 0.157inch |
| Polarized | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.232inch |
| Sealable | Yes (With) |
| Series | JPT, Micro Timer 2 |
| Serviceable | No |
| Strain Relief | No (Without) |
| Width | 1.516inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-968879-1 Datasheet
Download the complete datasheet for TE Connectivity 1-968879-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

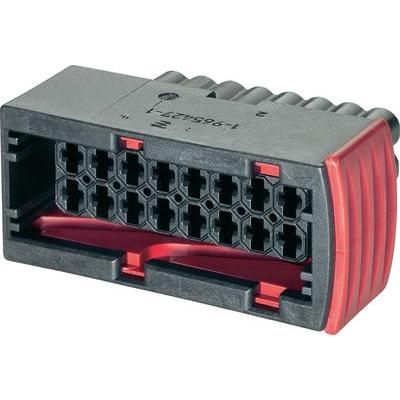

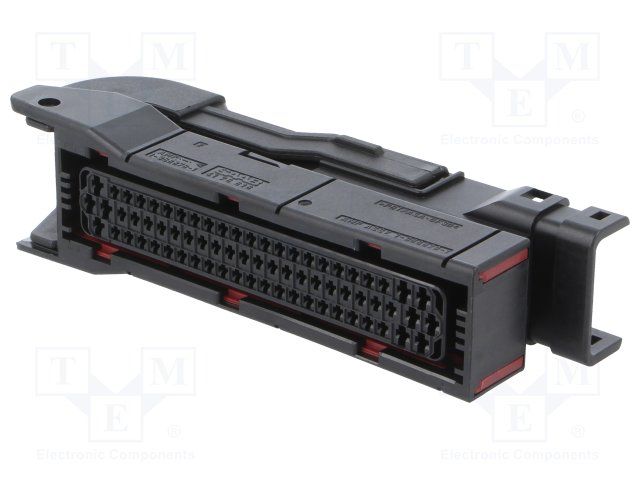

Product Images
