Right-angle, 125-position, 5-row, 25-column board-to-board receptacle with a 2mm pitch. Features bronze contacts with 0.76um gold plating, a 1.5A current rating, and a 500V voltage rating. Designed for through-hole and edge mounting, this grey housing component operates from -55°C to 125°C and boasts a UL94 V-0 flammability rating. Termination is press-fit.
Voltage Rating500V
Current Rating1.5A
MountingThrough Hole, Edge, Board
Quick Jump:
Technical Specifications
TE Connectivity 100145-1 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 20.2mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Grey |
| Length | 49.9mm |
| Make First / Break Last | No |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 500V |
| Mount | Through Hole, Edge, Board |
| Number of Columns | 25 |
| Number of Contacts | 125 |
| Number of Positions | 125 |
| Number of Rows | 5 |
| Orientation | Right Angle |
| Package Quantity | 11 |
| Packaging | Rail/Tube |
| PCB Mounting Orientation | Right Angle |
| Pitch | 2mm |
| Plating Thickness | 0.76um |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Row Spacing | 2mm |
| Series | Z-Pack |
| Shielding | Unshielded |
| Termination | Press-Fit |
| Voltage Rating | 500V |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity 100145-1 Datasheet
Download the complete datasheet for TE Connectivity 100145-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

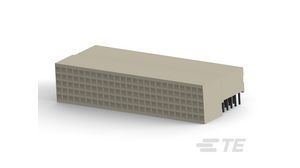

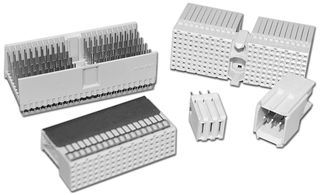

Product Images
