55-position, 2mm pitch male backplane connector with straight, through-hole mounting and press-fit termination. Features bronze contacts with 0.8um gold plating, a 1.5A current rating, and a 500V voltage rating. Operates within a temperature range of -55°C to 125°C, with a UL94 V-0 flammability rating. Housing is grey, with a depth of 15.4mm and length of 24.9mm.
Voltage Rating500V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 100159-1 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 15.4mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Grey |
| Length | 24.9mm |
| Make First / Break Last | No |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 500V |
| Mount | Through Hole |
| Number of Columns | 11 |
| Number of Contacts | 55 |
| Number of Positions | 55 |
| Number of Rows | 5 |
| Orientation | Straight |
| Package Quantity | 21 |
| Packaging | Rail/Tube |
| PCB Mounting Orientation | Vertical |
| Pitch | 2mm |
| Plating Thickness | 0.8um |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | Z-Pack |
| Shielding | Unshielded |
| Termination | Press-Fit |
| Voltage Rating | 500V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
TE Connectivity 100159-1 Datasheet
Download the complete datasheet for TE Connectivity 100159-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

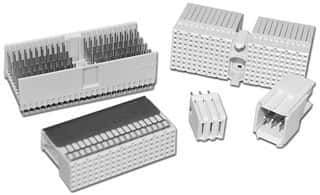

Product Images
