Shrouded Header, 2 positions, 1 row, 2.54mm pitch, straight orientation, through-hole mount. Features male pin contacts made of brass with tin-lead plating, rated for 3A current and 267V voltage. Insulation material is black thermoplastic with a UL94 V-0 flammability rating. Operating temperature range is -65°C to 105°C. Includes mating alignment and retention, with PCB mount retention.
Voltage Rating267V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 103669-1 technical specifications.
General
Approvals
CSA
Backwall/Post Interruptions
No (Without)
Contact Current Rating
3A
Contact Finish - Mating
Tin-Lead
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.23inch
Contact Plating
Tin, Lead, Bright
Contact Retention
Yes (With)
Contact Shape
Square
Contact Style
Pin
Contact Type
Male Pin
Current Rating
3A
Depth
6.98mm
ELV
Non-Compliant
Flammability Rating
UL94 V-0
Height
0.274inch
Housing Color
Black
Insulation Color
Black
Insulation Material
Thermoplastic
Lead Free
Contains Lead
Length
7.62mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
70
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.08inch
Pitch
2.54mm
Plating Thickness
2.54um
Radiation Hardening
No
RoHS Compliant
No
Row Spacing
0.1inch
Series
AMPMODU MTE
Strain Relief
No (Without)
Tail Length
3.3mm
Termination
Crimp
Voltage Rating
267V
Compliance
RoHS
Not CompliantNo
Datasheet
TE Connectivity 103669-1 Datasheet
Download the complete datasheet for TE Connectivity 103669-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

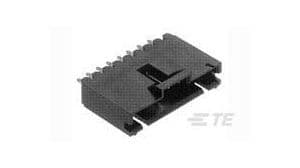

Product Images
