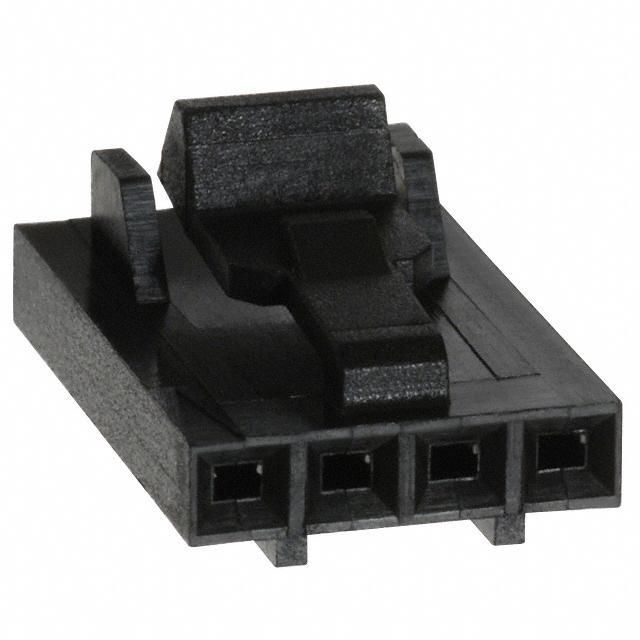

Four-position, single-row wire housing with a 2.54mm pitch, designed for straight, cable mounting. Features female socket contacts, a thermoplastic body, and a black housing. Rated for 3A maximum current and operates between -65°C and 105°C. Includes mating alignment, connector lock, and retention features. Compliant with UL and CSA approvals, RoHS, and UL94 V-0 flammability.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 104257-3 technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoplastic
Color
Black
Contact Gender
Female
Contact Type
Female Socket
Depth
15.24mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
5.08mm
Housing Color
Black
Lead Free
Lead Free
Lead Pitch
2.54mm
Length
0.398inch
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Current Rating
3A
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Free Hanging
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Operating Supply Voltage
267V
Orientation
Straight
Package Quantity
500
Packaging
Bag
PCB Mount Retention
Without
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
AMPMODU MTE
Strain Relief
No (Without)
Termination
IDC
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
22AWG
Compliance
RoHS
Compliant
