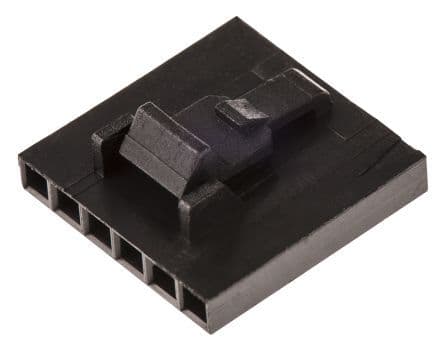

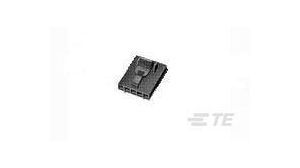

104257-5

6 Pos Receptacle Housing, Straight, 2.54mm Pitch, UL94 V-0

6-position, 1-row receptacle housing with a 2.54mm pitch, designed for board-to-board applications. Features include straight orientation, female socket contact type, and IDC termination for wire gauges 22-30 AWG. Constructed from black thermoplastic with UL94 V-0 flammability rating, this housing offers mating alignment, connector lock, and mating retention. Operating temperature range is -65°C to 105°C with a maximum operating voltage of 267V. Approvals include UL and CSA, with RoHS and ELV compliance.

MountingFree Hanging

Quick Jump:

Technical Specifications

TE Connectivity 104257-5 technical specifications.

General

Approvals	UL, CSA
Body Material	Thermoplastic
Color	Black
Contact Type	Female Socket
Depth	15.24mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	5.08mm
Housing Color	Black
Lead Free	Lead Free
Length	0.598inch
Mating Alignment	Yes (With)
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Free Hanging
Number of Contacts	6
Number of Positions	6
Number of Rows	1
Operating Supply Voltage	267V
Orientation	Straight
Package Quantity	500
Packaging	Bag
PCB Mount Retention	Without
Pitch	2.54mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	0.1inch
Series	AMPMODU MTE
Strain Relief	No (Without)
Termination	IDC
Wire Gauge (Max)	30AWG
Wire Gauge (Min)	22AWG
