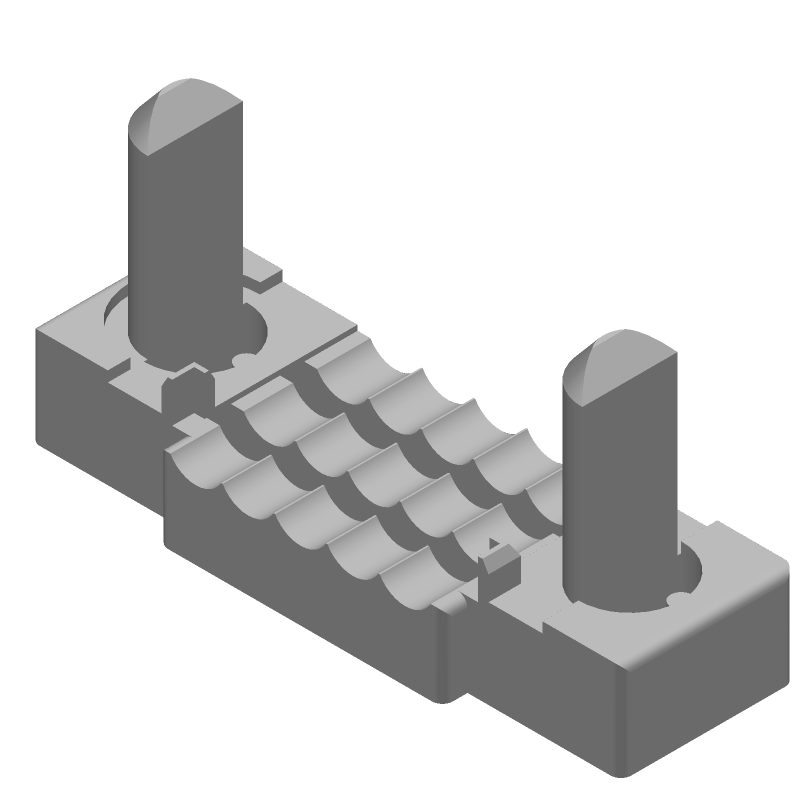

This polyester connector features a black housing and leads, with a 0.05inch pitch and 10 positions in a 2-row configuration. It is compliant with ELV and RoHS regulations, and has a flammability rating of UL94 V-0. The connector is lead-free and available in bulk packaging.
Quick Jump:
Technical Specifications
TE Connectivity 104891-1 technical specifications.
General
| Body Material | Polyester |
| Color | Black |
| Depth | 7.04mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 14.35mm |
| Material | Polyester |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 0.05inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 1.27mm |
| Series | AMPMODU 50/50 Grid |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 104891-1 Datasheet
Download the complete datasheet for TE Connectivity 104891-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
