Female RF coaxial connector with a straight, solder termination. Features a stainless steel body with gold plating and a copper center contact also plated in gold. Operates from 0 to 18 GHz with a maximum frequency of 18 GHz and a 50 Ohm impedance. Dielectric is TFE (Polytetrafluoroethylene) and the connector has a voltage rating of 335V. Rated for 500 mating cycles and operates within a temperature range of -65°C to 105°C.
Frequency18GHz
PackageSMA
Voltage Rating335V
MountingFree Hanging, Cable, Wire
Quick Jump:
Technical Specifications
TE Connectivity 1050859-1 technical specifications.
General
| Body Material | Stainless Steel |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 6.4mm |
| Dielectric Material | TFE |
| ELV | Compliant |
| Frequency | 18GHz |
| Gender | Female |
| Housing Color | Gold |
| Impedance | 50R |
| Insertion Loss | 0.3dB |
| Insulation Material | Polytetrafluoroethylene |
| Lead Free | Lead Free |
| Length | 0.5inch |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable, Wire |
| Number of Ports | 1 |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Straight |
| Packaging | Bag |
| Polarity | Normal |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 335V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1050859-1 Datasheet
Download the complete datasheet for TE Connectivity 1050859-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

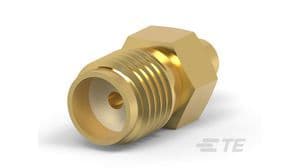

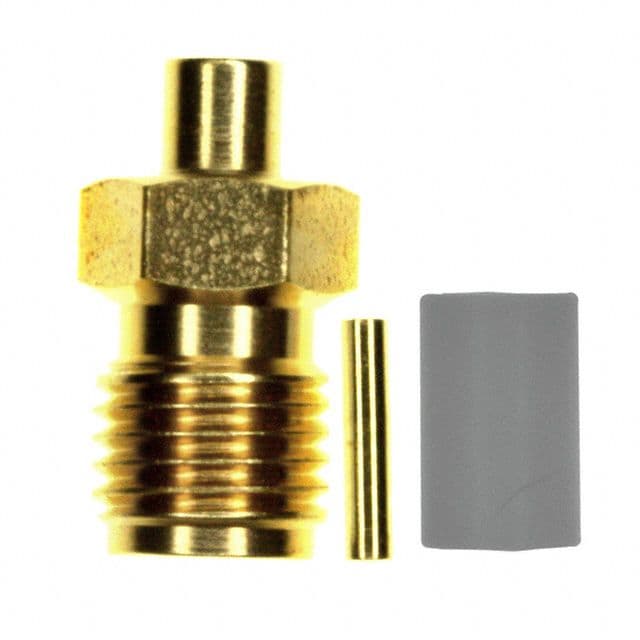

Product Images
