Right-angle SMA adapter for RF and coaxial applications, featuring a 50 Ohm impedance and operating frequency range of 0 to 18 GHz. Constructed with a stainless steel body and TFE dielectric, this connector offers gold-plated center contacts for superior conductivity. Designed for free-hanging, through-hole mounting with compression termination, it supports up to 500 mating cycles and operates within a temperature range of -65°C to 125°C.
Frequency18GHz
PackageSMA
MountingFree Hanging, Through Hole
Quick Jump:
Technical Specifications
TE Connectivity 1055070-1 technical specifications.
General
| Body Material | Stainless Steel |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Copper, Gold |
| Depth | 7.9mm |
| Dielectric Material | TFE |
| ELV | Compliant |
| Frequency | 18GHz |
| Impedance | 50R |
| Insulation Material | Tetrafluoroethylene |
| Lead Free | Lead Free |
| Length | 14.9mm |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Through Hole |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Right Angle |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | COMPRESSION |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1055070-1 Datasheet
Download the complete datasheet for TE Connectivity 1055070-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

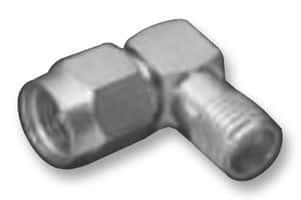

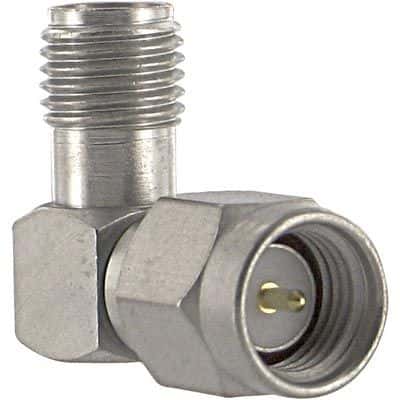

Product Images
