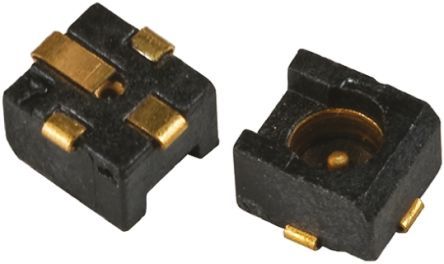

Vertical mount SMB RF connector, male gender, with a 50 Ohm impedance and a maximum operating frequency of 6 GHz. Features a copper alloy center contact and polyphenylene body, both plated with gold. Designed for surface mount PCB applications, this connector offers a voltage rating of 250V and a mating cycle of 100. It operates within a temperature range of -40°C to 125°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1055687-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Polyphenylene |
| Body Plating | Gold |
| Package/Case | SMB |
| Center Contact Plating | Gold |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Depth | 5mm |
| Dielectric Material | Polyphenylene |
| Frequency | 6GHz |
| Gender | Male |
| Height | 2.06mm |
| Impedance | 50R |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Mating Cycles | 100 |
| Max Frequency | 6GHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Operating Frequency | 0 to 6 GHz |
| Orientation | Straight |
| Outside Diameter | 2.6mm |
| Packaging | Bag |
| PCB Mounting Orientation | Vertical |
| Plating | Gold |
| Polarity | Normal |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Termination | SMD/SMT |
| Voltage Rating | 250V |
| RoHS | Compliant |
