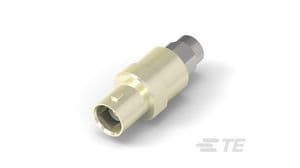

RF Coaxial Adapter, SMA to SMA, straight orientation, free hanging mount. Features stainless steel body with nickel plating, copper center contact with gold plating, and TFE dielectric. Operates from 0 to 4 GHz with 50 Ohm impedance and a voltage rating of 335V. Maximum operating temperature is 165°C, with a minimum of -65°C. RoHS and ELV compliant.
Frequency4GHz
PackageSMA
Voltage Rating335V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 1058083-1 technical specifications.
General
Body Material
Stainless Steel
Body Plating
Nickel
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Depth
12.7mm
Dielectric Material
TFE
ELV
Compliant
Frequency
4GHz
Impedance
50R
Insulation Material
Tetrafluoroethylene
Lead Free
Lead Free
Length
34.6mm
Material
Stainless Steel
Max Frequency
4GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging
Operating Frequency
0 to 4 GHz
Orientation
Straight
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Voltage Rating
335V
Compliance
RoHS
Compliant
