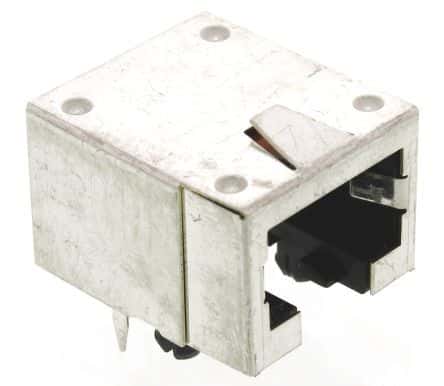

Shielded modular jack, right-angle orientation, featuring 8 positions and 8 loaded contacts. This female connector utilizes bronze contacts with a 1.5A current rating and 150V voltage rating. Constructed from polyester with a black housing, it offers a 2.54mm pitch and solder termination, operating within a -40°C to 70°C temperature range. UL94 V-0 flammability rating and RoHS compliance are confirmed.
Voltage Rating150V
Current Rating1.5A
Quick Jump:
Technical Specifications
TE Connectivity 106066-2 technical specifications.
General
Contact Material
Bronze
Current Rating
1.5A
Depth
19.1mm
Direction
Down
Element Configuration
Single
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Keyed
No
Lead Free
Lead Free
Length
16.5mm
Material
Polyester
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
150V
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Positions Loaded
8
Number of Rows
1
Number of Ways
8
Orientation
Right Angle
Package Quantity
1140
Packaging
Tray
PCB Mounting Orientation
Right Angle
PCB Thickness
1.6mm
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Shielding
Shielded
Tail Length
0.126inch
Termination
Solder
Voltage Rating
150V
Compliance
RoHS
Compliant
