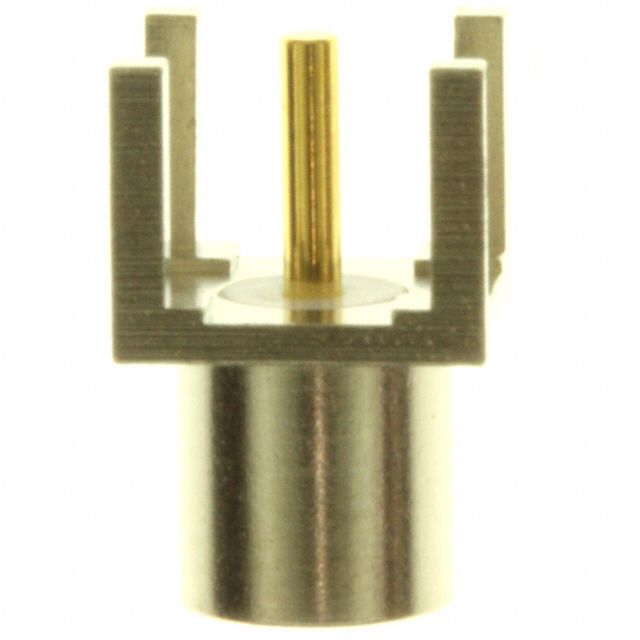

RF coaxial connector, MCX series, featuring a straight, female configuration with a 50 Ohm impedance and operating frequency range of 0 to 6 GHz. Constructed with a brass body plated in nickel and a copper center contact plated in gold, it utilizes a TFE dielectric for reliable performance. This through-hole mount connector supports solder termination, offers a voltage rating of 335V, and is rated for 500 mating cycles with a maximum operating temperature of 165°C.
Frequency6GHz
Voltage Rating335V
MountingThrough Hole, PCB
PolarityNormal
Quick Jump:
Technical Specifications
TE Connectivity 1060989-1 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Depth
6mm
Dielectric Material
TFE
Frequency
6GHz
Gender
Female
Height
5.36mm
Housing Color
Silver
Impedance
50R
Insertion Loss
0.1dB
Insulation Material
Tetrafluoroethylene
Length
6mm
Mating Cycles
500
Max Frequency
6GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Through Hole, PCB
Number of Ports
1
Operating Frequency
0 to 6 GHz
Orientation
Straight
Packaging
Bulk
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Polarity
Normal
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
335V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1060989-1 Datasheet
Download the complete datasheet for TE Connectivity 1060989-1 to view detailed technical specifications.
